KTM02 TRAVEL MOTOR NACHI PHV-1B APPLY FOR KUBOTA U15-3
| Model Number | KTM02C TM02C |
|---|---|
| Minimum Order Quantity | 1 |
| Price | 100-1000 |
| Supply Ability | 1000 |
Product Details
| Model | TM02C KTM02C | Part Name | Travel Motor/Final Drive |
|---|---|---|---|
| Type | Hydraulic Motor | Condition | New |
| Packing | Wooden Case | Color | Red |
| Material | Steel | Quality | High Quality OEM Standard Final Drive |
Product Description
KTM02 TRAVEL MOTOR NACHI PHV-1B APPLY FOR KUBOTA U15-3 Kubota U15-3 / 15 / KX 008 / KX 41.2 Komatsu PC14R2 / PC15R8 / PC07 Kobelco SK1.5 Yuchai YC18 New Holland E18C Hitachi ZX18 Ishijima 10F2 Case CX18
- This travel motor assembly for mini excavators, fully compatible with Kubota 1-1.8 ton class excavators listed , and serves as a direct drop-in replacement for the original Nachi PHV-1B.
- The upper and lower frame mounting flanges feature different hole counts: 8 evenly spaced M10 bolt holes on the upper flange, and 9 evenly spaced M10 bolt holes on the lower flange. Always align with the official installation drawing during assembly
- It supports 2-speed hydraulic control, perfectly matching the high/low speed travel operation of mini excavators, and is equipped with 4 hydraulic port connections to fit the hydraulic hose layout of all compatible machines.
| Item | Details |
| Product Model | KTM02 |
| Applicable Machine Weight | 1-1.8 Ton Mini Excavators |
| Equivalent OEM Model | Nachi PHV-1B |
| Compatible Excavator Models | Kubota U15-3 / 15 / KX 008 / KX 41.2
Komatsu PC14R2 / PC15R8 / PC07
Kobelco SK1.5Yuchai YC18 New Holland E18C Hitachi ZX18 Ishijima 10F2 Case CX18 |

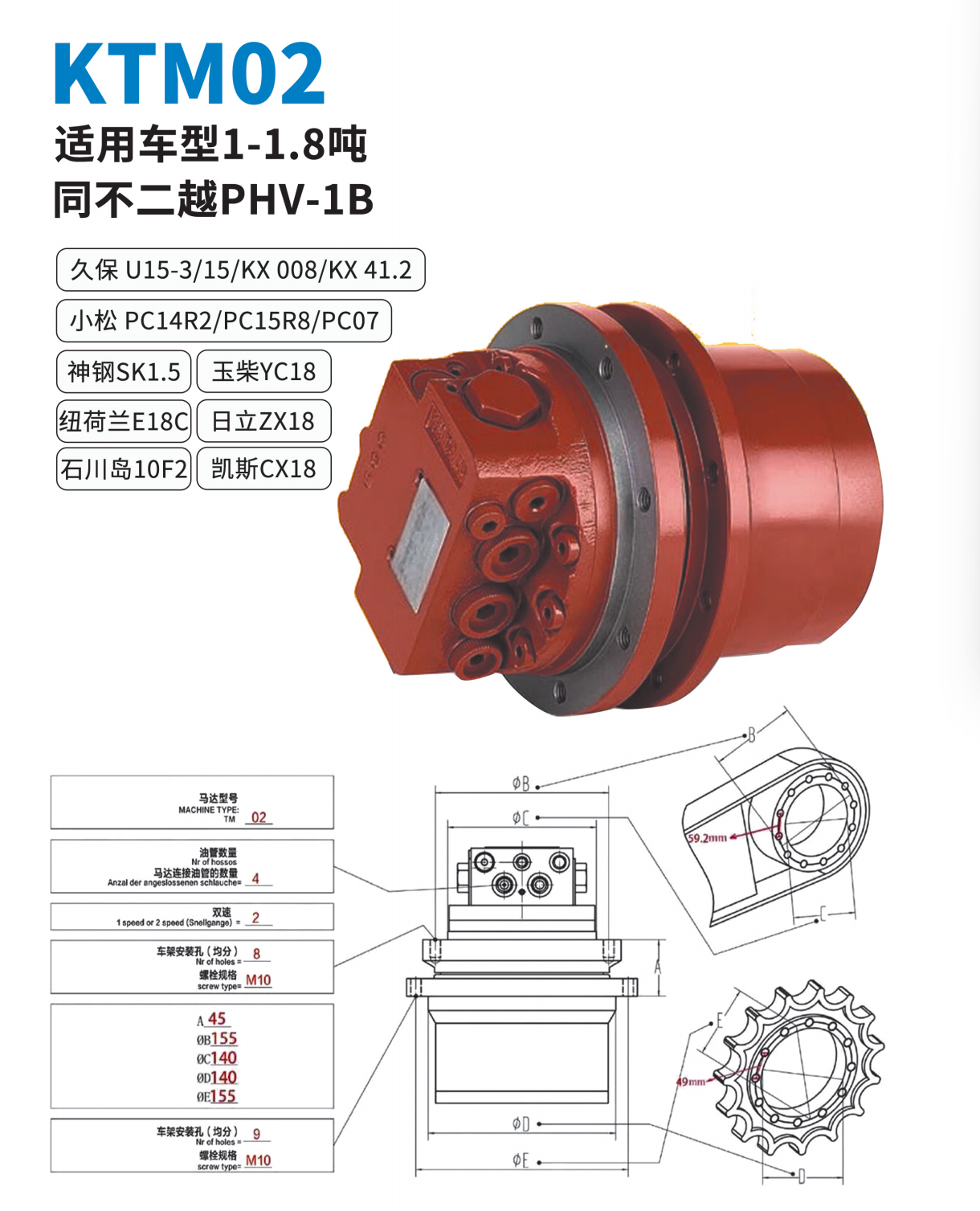

| Parameter | Specification |
| Motor Type | TM 02 KTM02 |
| Number of Hydraulic Ports (Hose Connections) | 4 |
| Speed Type | 2-Speed (Dual Speed) |
| Upper Frame Mounting Holes (Evenly Spaced) | 8 pcs, Bolt Size M10 |
| Lower Frame Mounting Holes (Evenly Spaced) | 9 pcs, Bolt Size M10 |
| Dimension A | 45 mm |
| Dimension φB | 155 mm |
| Dimension φC | 140 mm |
| Dimension φD | 140 mm |
| Dimension φE | 155 mm |
| Upper Sprocket Center Distance | 59.2 mm |
| Lower Sprocket Center Distance | 49 mm |
