KTM02C TRAVEL MOTOR APPLY FOR KUBOTA KX41.2 KX36.3 KX41.2V
| Model Number | KTM02C TM02C |
|---|---|
| Minimum Order Quantity | 1 |
| Price | 100-1000 |
| Supply Ability | 1000 |
Product Details
| Model | TM02C KTM02C | Part Name | Travel Motor/Final Drive |
|---|---|---|---|
| Type | Hydraulic Motor | Condition | New |
| Packing | Wooden Case | Color | Red |
| Material | Steel | Quality | High Quality OEM Standard Final Drive |
Product Description

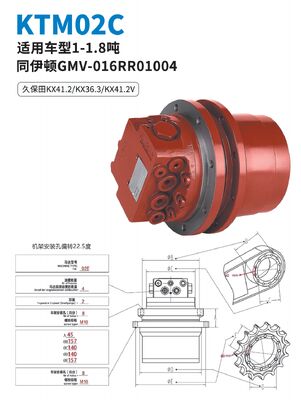

KTM02C TM02C TRAVEL MOTOR APPLY FOR KUBOTA KX41.2 KX36.3 KX41.2V
This travel motor assembly for mini excavators, fully compatible with Kubota 1-1.8 ton class excavators listed , and serves as a direct drop-in replacement for the original Eaton GMV-016RR01004 unit.
Both upper and lower frame mounting flanges feature 8 M10 bolt holes with a 22.5° offset design. Always align with the installation drawing during assembly.
Supports 2-speed hydraulic control, matching the high/low speed travel operation of mini excavators. It is equipped with 4 hydraulic port connections, fully fitting the hydraulic hose layout of the compatible machines.
| Item | Details |
| Product Model | KTM02C |
| Applicable Machine Weight | 1-1.8 Ton Mini Excavators |
| Equivalent OEM Model | Eaton GMV-016RR01004 |
| Compatible Excavator Models | Kubota KX41.2 / KX36.3 / KX41.2V |
| Parameter | Specification |
| Motor Type | TM 02E |
| Number of Hydraulic Ports (Hose Connections) | 4 |
| Speed Type | 2-Speed (Dual Speed) |
| Frame Mounting Holes (Evenly Spaced) | 8 pcs, Bolt Size M10 |
| Mounting Hole Offset Angle | 22.5° |
| Dimension A | 45 mm |
| Dimension φB | 157 mm |
| Dimension φC | 140 mm |
| Dimension φD | 140 mm |
| Dimension φE | 157 mm |
| Sprocket Center Distance | 60 mm |
Contact me to learn more
