LQ15V00019F1R LQ15V00019F1C LQ15V00007F2 HYDRAULIC MOTOR SK235SRLC-1E SK235SRNLC-1E SK210LC-6E SK235SRLC SK235SR SK250LC-6E

  • LQ15V00019F1R LQ15V00019F1C LQ15V00007F2 HYDRAULIC MOTOR SK235SRLC-1E SK235SRNLC-1E SK210LC-6E SK235SRLC SK235SR SK250LC-6E
  • LQ15V00019F1R LQ15V00019F1C LQ15V00007F2 HYDRAULIC MOTOR SK235SRLC-1E SK235SRNLC-1E SK210LC-6E SK235SRLC SK235SR SK250LC-6E
  • LQ15V00019F1R LQ15V00019F1C LQ15V00007F2 HYDRAULIC MOTOR SK235SRLC-1E SK235SRNLC-1E SK210LC-6E SK235SRLC SK235SR SK250LC-6E
  • LQ15V00019F1R LQ15V00019F1C LQ15V00007F2 HYDRAULIC MOTOR SK235SRLC-1E SK235SRNLC-1E SK210LC-6E SK235SRLC SK235SR SK250LC-6E
  • LQ15V00019F1R LQ15V00019F1C LQ15V00007F2 HYDRAULIC MOTOR SK235SRLC-1E SK235SRNLC-1E SK210LC-6E SK235SRLC SK235SR SK250LC-6E
  • LQ15V00019F1R LQ15V00019F1C LQ15V00007F2 HYDRAULIC MOTOR SK235SRLC-1E SK235SRNLC-1E SK210LC-6E SK235SRLC SK235SR SK250LC-6E
Place of Origin Made in china
Brand Name TCY
Model Number KYB MAG-170VP
Minimum Order Quantity 1
Price 1000-3000
Packaging Details Wooden Case
Delivery Time 2-3/Negotiate
Payment Terms T/T,Alipay,Wechat ...etc.

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Part Number LQ15V00019F1R LQ15V00019F1C LQ15V00007F2 Model KYB MAG-170VP
Product Name Final Drive Wooden Box Size 60*60*75
Weight 325kg Condition New
Fit For SK235SRLC-1E SK235SRNLC-1E SK210LC-6E SK235SRLC SK235SR SK250LC-6E SK200-6E Apply For Excavator Final Device
Leave a Message
Product Description

TCY LQ15V00019F1R LQ15V00019F1C LQ15V00007F2 HYDRAULIC MOTOR SK235SRLC-1E SK235SRNLC-1E SK210LC-6E SK235SRLC SK235SR SK250LC-6E






Model:KYB MAG-170VP Part name:Final drive
Part NO.:LQ15V00019F1R LQ15V00019F1C LQ15V00007F2 MOQ:1PCS
Packing:Wooden case Place of Origin:China
Aftersale service provided:Online support  Apply To:Excavator Final Drive
Delivery Time: 1-3 days Or negotiate Note: Other models can be consulted online



Product Details

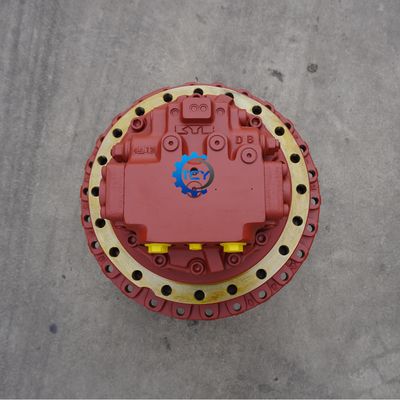

LQ15V00019F1R LQ15V00019F1C LQ15V00007F2 HYDRAULIC MOTOR SK235SRLC-1E SK235SRNLC-1E SK210LC-6E SK235SRLC SK235SR SK250LC-6E 0

Pos. Part No Qty Parts name Comments
· LQ15V00007F2
[1]		 HYDRAULIC
MOTOR
KOB ASSY(PROPELLING)Superseded by part number:LQ15V00019F1
·· LQ15V00019F1R [1] REMAN-HYD
MOTOR		 RAC SK250LC-6E DYNAMIC ACERA LL09U0575,LL09U607~,ASSY,Reman for
New PN LQ15V00007F2
· LQ15V00019F1C [1] CORE-MOTOR
HYDRAULIC		 RAC Return Number
1. NSS [1] NOT SOLD
SEPARAT
CON FLANGE,FOR(F1 ONLY)
2. NSS [1] NOT SOLD
SEPARAT		 CON PLATE
3. NSS
[1]		 NOT SOLD
SEPARAT		 CON SPOOL
4. NSS [2] NOT SOLD
SEPARAT		 CON VALVE,CHECK

5.		 NSS [2] NOT SOLD
SEPARAT		 CON SPRING
6. NSS
[2]		 NOT SOLD
SEPARAT		 CON PLUG

7.		 ZD12P02100
[2]
O-RING,2.4mm Thk
x20.8mm ID,90
Duro
KOB O-Ring--ID 20.80±0.23×OD 25mm
8. 2436U1027S203 [2] SEAT/SLOT KOB SPRING
9. 2441U983S9 [2] SPRING KOB
10. 2436U1027S205 [2] SEAT/SLOT KOB SPRING
11. NSS
[2]		 NOT SOLD
SEPARAT		 CON CAP

12.		 ZD12G04500
[2]
O-RING,44.40mm
ID×50.60mm ODx
3.10mm
KOB ID 44.40±0.41x OD 50mm

13.		 ZS23C12040
[8]
SCREW,Hex
Socket Head,M12x
40mm
KOB M12x1.75x40mm
14. ZD12P00800
[2]		 O-RING,1.9mm Thk
X7.8mm ID,90 Duro		 KOB ID 7.8mm x OD 9.7mm
15. LQ15V00007S015 [2] PLUG KOB
16. NSS
[2]		 NOT SOLD
SEPARAT		 CON ORIFICE
18. NSS [4] NOT SOLD
SEPARAT		 CON PLUG
19. NSS [1] NOT SOLD
SEPARAT		 CON SPOOL
20. NSS [1] NOT SOLD
SEPARAT		 CON SPOOL
21. LQ15V00007S021 [1] FILTER KOB
22. ZD12P00600 [1] O-RING KOB ID 05.80±0.15×OD 09mm
23. ZD12P00500 [1] O-RING KOB
24. ZD85P00600 [1] BACK-UP RING KOB
25. ZD85P00500 [1] BACK-UP RING KOB
26. LQ15V00007S026 [1] RING KOB RETAINING
27. LQ15V00007S027 [1] SPRING KOB
28. 2441U792S141 [1] PLUG KOB
29. ZD12P01800 [2] O-RING KOB ID 17.8mm x OD 20.2mm
30. LQ15V00007S030 [1] GUIDE PIN KOB SPRING
31. LQ15V00007S031 [1] PLUG KOB
32. 2441U983S27 [1] WASHER KOB
33. NSS [6] NOT SOLD
SEPARAT		 CON PLUG
34. NSS [1] NOT SOLD
SEPARAT		 CON ORIFICE
35. NSS [2] NOT SOLD
SEPARAT		 CON ORIFICE
36. NSS [5] NOT SOLD
SEPARAT		 CON ORIFICE
37. 2441U984S35 [4] PLUG KOB
38. ZD12P01100 [4] O-RING KOB ID 10.8mm x OD 13.2mm
39. LQ15V00007S039 [2] CHECK VALVE KOB
40. LQ15V00007S040 [2] SPRING KOB
41. ZD12P01200 [2] O-RING KOB ID 11.80±0.19×OD 16mm
42. LQ15V00007S042 [1] SHAFT KOB
43. NSS [1] NOT SOLD
SEPARAT		 CON BLOCK,CYLINDER
44. NSS [9] NOT SOLD
SEPARAT		 CON PISTON ASSY
45. NSS [1] NOT SOLD
SEPARAT		 CON PLATE
46. NSS [1] NOT SOLD
SEPARAT		 CON HOLDER
47. YN15V00005S114 [1] SNAP RING KOB RETAINING
48. YN15V00005S115 [1] SPRING SEAT KOB
49. YN15V00005S116 [1] SPRING KOB
50. YN15V00005S117 [1] RING KOB COLLER
51. 2441U792S119 [3] PIN KOB
52. LQ15V00007S052 [1] PLATE KOB Superseded by part number:LQ15V00007S046
53. 2441U792S110 [2] BALL KOB
54. NSS [2] NOT SOLD
SEPARAT		 CON PISTON ASSY
55. LQ15V00007S055 [1] BALL BEARING KOB
56. LQ15V00007S056 [1] BALL BEARING KOB
57. 2441U563S117 [1] PIN KOB

58.		 ZS23C14035
[10]
SCREW,Hex
Socket Head,M14x
35mm
KOB M14×2.0x35mm
59. 2441U983S121 [1] OIL SEAL KOB Superseded by part number:24100U84S25
60. LQ15V00007S060 [3] PLATE KOB DISK
61. 2441U983S126 [2] PLATE KOB FRICTION
62. LQ15V00007S062 [1] KIT KOB PISTON,BRAKE
63. 2441U984S42 [1] O-RING KOB
64. 2441U983S130 [1] O-RING KOB
65. 2441U792S130 [8] SPRING KOB
66. YN15V00005S128 [4] PIN KOB
67. YN15V00005S139 [2] SPRING KOB
68. YN15V00005S105 [1] PLATE KOB VALVE
69. ZD12P01000 [4] O-RING KOB ID 09.80±0.17×OD 13mm
70. 2441U802S67 [1] O-RING KOB
71. NSS [1] NOT SOLD
SEPARAT		 CON NAME PLATE

72.		 NSS
[2]		 NOT SOLD
SEPARAT		 CON SCREW

73.		 NSS [2] NOT SOLD
SEPARAT		 CON PLUG
74. NSS
[1]		 NOT SOLD
SEPARAT		 CON PLUG
75. NSS
[1]		 NOT SOLD
SEPARAT		 CON PLUG
76. YN53D00003S211 [1] SEAL KOB FROATING
77. LQ15V00007S077 [2] BEARING KOB ANGULAR

78.		 NSS
[1]		 NOT SOLD
SEPARAT
CON HOUSING,FOR(F1 ONLY)
79. NSS [1] NOT SOLD
SEPARAT		 CON SHIM
80. LQ15V00007S080 [1] HOLDER KOB Superseded by part number:LQ15V00019S074

81.		 LQ15V00007S081
[8]		 FRICTION
WASHER		 KOB
82. LQ15V00007S082 [8] SCREW KOB
83. LQ15V00007S083 [4] PLATE KOB THRUST
84. LQ15V00007S084 [4] RACE KOB INNER
85. LQ15V00007S085 [4] BEARING ASSY KOB NEEDLE
86. LQ15V00007S086 [4] DRIVEN GEAR KOB
87. LQ15V00007S087 [4] PLATE KOB THRUST
88. LQ15V00007S088 [4] SCREW KOB
89. LQ15V00007S089 [1] SUN GEAR KOB
90. LQ15V00007S090 [1] RING KOB SNAP
91. LQ15V00007S091 [1] HOLDER KOB
92. LQ15V00007S092 [3] PLATE KOB THRUST
93. LQ15V00007S093 [3] RACE KOB INNER
94. LQ15V00007S094 [3] BEARING KOB NEEDLE
95. LQ15V00007S095 [3] GEAR KOB
96. LQ15V00007S096 [3] PLATE KOB THRUST
97. LQ15V00007S097 [1] PLATE KOB THRUST
98. LQ15V00007S098 [3] SCREW KOB
99. LQ15V00007S099 [1] DRIVEN GEAR KOB
100. NSS [1] NOT SOLD
SEPARAT		 CON PLATE,THRUST
101. LQ15V00007S101 [1] COVER KOB

102.		 LQ15V00007S102
[16]
SCREW,Hex
Socket Head,M10x
16mm
KOB Superseded by part number:ZS28C10016
103. LQ15V00007S103 [3] PLUG KOB
104. ZD12P02400 [3] O-RING KOB ID 23.70±0.24×OD 30mm
105. LQ15V00007S105 [4] PIN KOB
106. NSS [1] NOT SOLD
SEPARAT
CON FLANGE,FOR(F2 ONLY)
107. NSS [1] NOT SOLD
SEPARAT
CON HOUSING,FOR(F2 ONLY)
·· LQ15V00007R100
[1]
REPAIR KIT		 KOB CONSISTS OF REF
7(2),12(2),14(2),22(1),23(1),24(1),25(1),29(2),41(2),59(1),63(1),64(1),69(4),70(1)
Superseded by part number:LQ15V00019R100
  LQ15V00007R200 [1] REPAIR KIT KOB CONSISTS OF REF 76(2),104(3)Superseded by part number:
LQ15V00031R200

LQ15V00007R300
[1]		 REPAIR KIT FOR
(F1
ONLY(CONSISTS
OF REF 1(1),54(2)
REPAIR KIT FOR(F1 ONLY(CONSISTS OF REF 1(1),54(2)
·· LQ15V00007R400 [1] REPAIR KIT KOB CONSISTS OF REF 2(1),18(4),33(6),34(1),35(2),36(5),37(4),38(4)
·· LQ15V00007R500 [1] REPAIR KIT KOB CONSISTS OF REF 11(1),12(1),13(4),14(1),15(1),16(1)
·· LQ15V00007R600 [1] REPAIR KIT KOB CONSISTS OF REF 43(1),44(9),45(1),46(1),47(1),48(1),49(1),50(1),51(3)
Superseded by part number:LQ15V00019R600
·· LQ15V00007R700 [1] REPAIR KIT KOB CONSISTS OF REF 79(1)
· LQ15V00007R800 [1] REPAIR KIT KOB CONSISTS OF REF 100(1)
· LQ15V00007R900 [1] REPAIR KIT KOB FOR(F2 ONLY)CONSISTS OF REF 54(2),106(1)

Exhibition

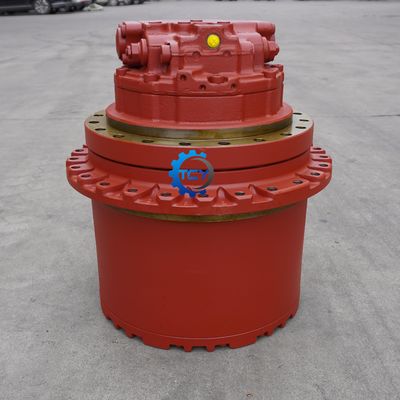

LQ15V00019F1R LQ15V00019F1C LQ15V00007F2 HYDRAULIC MOTOR SK235SRLC-1E SK235SRNLC-1E SK210LC-6E SK235SRLC SK235SR SK250LC-6E 1

Factory Show

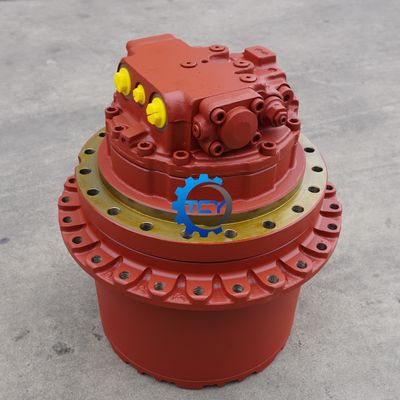

LQ15V00019F1R LQ15V00019F1C LQ15V00007F2 HYDRAULIC MOTOR SK235SRLC-1E SK235SRNLC-1E SK210LC-6E SK235SRLC SK235SR SK250LC-6E 2

Shipping

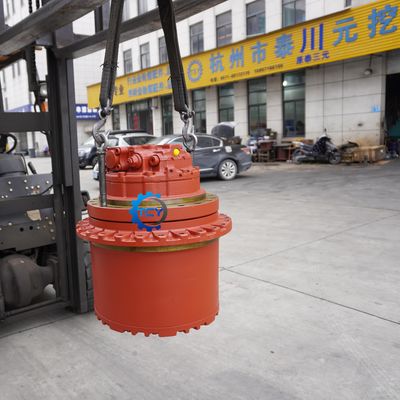

LQ15V00019F1R LQ15V00019F1C LQ15V00007F2 HYDRAULIC MOTOR SK235SRLC-1E SK235SRNLC-1E SK210LC-6E SK235SRLC SK235SR SK250LC-6E 3



LQ15V00019F1R LQ15V00019F1C LQ15V00007F2 HYDRAULIC MOTOR SK235SRLC-1E SK235SRNLC-1E SK210LC-6E SK235SRLC SK235SR SK250LC-6E 4



FAQ



Q:What is your sample policy?

A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.



Q:What are your main products?

A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.

If you need other excavator accessories, we can also supply according to your.



Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.



Q:How do I order?

A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.



Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
