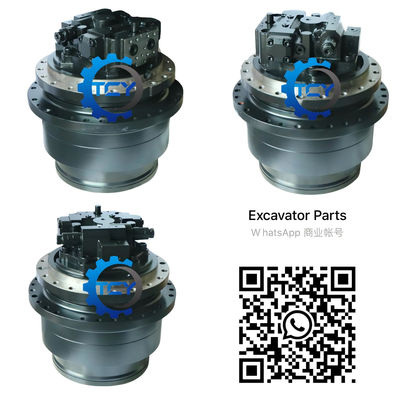

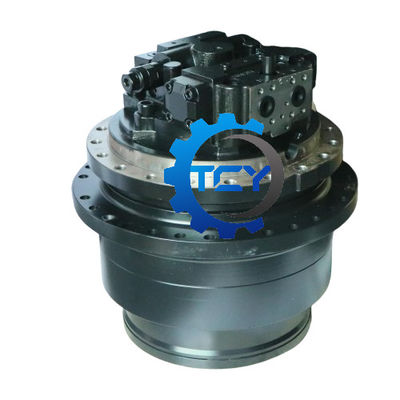

Hydraulic Travel Motor EC240B EC290B EC290C Drive unit VOE14551150 VOE14521691 VOE14522894 VOE14524707 VOE14551154 Final Drive
| Place of Origin | Made in china |
|---|---|
| Brand Name | TCY |
| Model Number | EC240B EC290B EC290C |
| Minimum Order Quantity | 1 |
| Price | 1000-3000 |
| Packaging Details | Wooden Case |
| Delivery Time | 2-3/Negotiate |
| Payment Terms | T/T,Alipay,Wechat ...etc. |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Final Drive | Model | EC240B EC290B EC290C Ect. |
|---|---|---|---|
| Part Number | VOE14551150 VOE14521691 VOE14522894 VOE14524707 VOE14551154 | Weight | 385kg |
| Condition | New | Apply For | Volvo Excavator |
| Application | Excavator Final Drive | Delivery Port | Guangzhou Ningbo Yiwu |
| Highlight | EC240B Hydraulic Travel Motor,Final Drive Hydraulic Travel Motor,EC290B Hydraulic Travel Motor |
||
Product Description
TCY Hydraulic Travel Motor EC240B EC290B EC290C Drive unit VOE14551150 VOE14521691 VOE14522894 VOE14524707 VOE14551154 Final Drive
| Model: EC240B EC290B EC290C ect. | Part name:Final drive |
| Part NO.:VOE14551150 VOE14521691 VOE14522894 VOE14524707 VOE14551154 | MOQ:1PCS |
| Packing:Wooden case | Place of Origin:China |
| Aftersale service provided:Online support | Apply To:Excavator Final Drive |
| Delivery Time: 1-3 days Or negotiate | Note: Other models can be consulted online |
Product structure diagram
| Pos. | Part No | Qty | Parts name |
| VOE14528258 | [1] | Travel Gearbox | |
| . | VOE14522896 | [1] | Housing |
| 2. | SA7117-38230 | [2] | Bearing |
| 3. | VOE14667679 | [1] | Seal |
| 4. | VOE14528319 | [1] | Nut |
| 5. | VOE14526459 | [3] | Screw |
| 6. | VOE14601855 | [1] | Cover |
| 7. | VOE983524 | [3] | O-ring |
| 8. | VOE14883848 | [3] | Plug |
| 9. | VOE14522897 | [1] | Gear |
| 0. | SA9016-21620 | [20] | Hex.socket screw |
| 1. | VOE14551153 | [1] | Planet carrier |
| 2. | VOE14556491 | [6] | Washer |
| 3. | SA7117-38320 | [1] | Planet carrier |
| 4. | SA7117-38230 | [1] | Bearing |
| 5. | SA7117-38340 | [1] | Ring |
| 6. | SA7117-38350 | [3] | Planetary Gear |
| 7. | SA7117-38360 | [3] | Needle bearing |
| 8. | SA7117-38380 | [1] | Pin |
| 9. | SA9325-06012 | [3] | Spring pin |
| 20. | VOE14551156 | [1] | Planet carrier |
| 21. | SA9325-06012 | [3] | Spring pin |
| 22. | VOE13914468 | [3] | Snap ring |
| 23. | SA7117-38180 | [1] | Pin |
| 24. | SA7117-38391 | [1] | Planet carrier |
| 25. | SA7117-38400 | [1] | Gear |
| 26. | SA7117-38410 | [1] | Ring |
27. |
SA7117-38420 | [3] | Needle Bearing |
| 28. | SA7117-38431 | [3] | Planetary gear |
| 29. | VOE14556489 | [1] | Washer |
| 30. | VOE14556490 | [1] | Washer |
| 31. | SA1036-00290 | [1] | Thrust ring |
| 32. | SA7117-38371 | [1] | Gear |
| 33. | VOE914467 | [1] | Retaining ring |
| 34. | SA7117-38271 | [4] | Planet gear |
| 35. | SA7117-38520 | [4] | Needle bearing |
| 36. | SA7117-38301 | [4] | Pin |
| 37. | SA7117-38460 | [4] | Inner ring |
| 38. | VOE14546062 | [8] | Washer |
| 39. | SA9325-06012 | [4] | Spring pin |
| 40. | SA8230-21020 | [1] | Thrust ring |
| 41. | VOE967631 | [16] | Hex.socket screw |
| 42. | VOE955922 | [16] | Spring washer |
Exhibition
Factory
shipping
FAQ
Q:What is your sample policy?
A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q:What are your main products?
A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.
If you need other excavator accessories, we can also supply according to your.
Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.
Q:How do I order?
A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.
Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
