VOE14632579 14736275 14766025 Hydraulic Travel Motor EC380E EC480D EC480E EC480EHR EC480 Final Drive
| Place of Origin | Made in china |
|---|---|
| Brand Name | TCY |
| Model Number | EC480D EC480 |
| Minimum Order Quantity | 1 |
| Price | 1000-3000 |
| Packaging Details | Wooden Case |
| Delivery Time | 2-3/Negotiate |
| Payment Terms | T/T,Alipay,Wechat ...etc. |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Final Drive | Part Number | VOE14632579 14736275 14766025 Ect. |
|---|---|---|---|
| Weight | 600kg | Apply For | EC380E EC480D EC480E EC480EHR |
| Application | Excavator Final Drive | Delivery Port | Guangzhou Ningbo Yiwu |
| Highlight | 14736275 Hydraulic Travel Motor,14766025 Hydraulic Travel Motor,EC480E Hydraulic Travel Motor |
||
Product Description

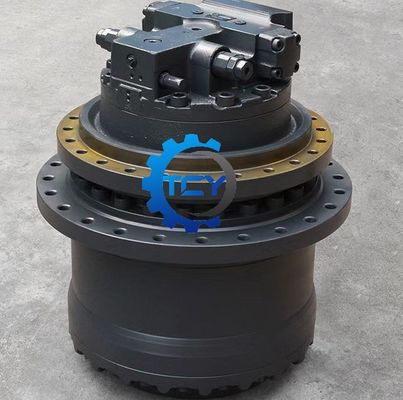

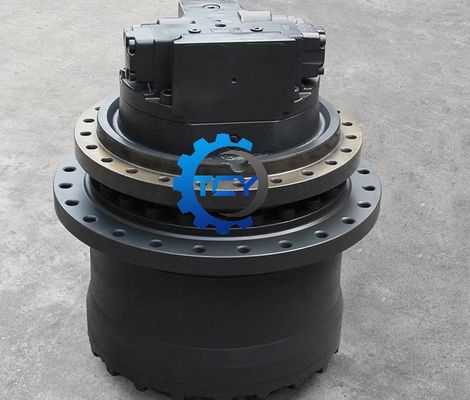

TCY VOE14632579 14736275 14766025 Hydraulic Travel Motor EC380E EC480D EC480E EC480EHR EC480 Final Drive
| Model:EC380E EC480D EC480E EC480EHR | Part name:Final drive |
| Part NO.:VOE14632579 14736275 14766025 ect. | MOQ:1PCS |
| Packing:Wooden case | Place of Origin:China |
| Aftersale service provided:Online support | Apply To:Excavator Final Drive |
| Delivery Time: 1-3 days Or negotiate | Note: Other models can be consulted online |
Product structure diagram
| Pos. | Part No | Qty | Parts name |
| VOE14631200 | [2] | Travel gearbox | |
| 1. | VOE14640155 | [1] | Housing |
| 2. | VOE14631201 | [1] | Gear |
| 3. | VOE14608106 | [1] | Seal |
| 4. | VOE14608107 | [1] | Gear |
| 5. | VOE14608108 | [1] | Flexible coupling |
| 6. | VOE14599925 | [2] | Seal |
| 7. | VOE14608104 | [2] | Bearing |
| 8. | VOE14608135 | [1] | Shim |
| 9. | VOE984848 | [24] | Hex.socketscrew |
| 10. | SA9324-21821 | [4] | Bearing spindle |
| 11. | VOE14608133 | [1] | Retainer |
| 12. | VOE997523 | [20] | Hex.socketscrew |
| 13. | VOE14608115 | [1] | Gear |
| 14. | VOE14653465 | [1] | Cover |
| 15. | VOE14608132 | [1] | Gear |
| 16. | VOE997446 | [16] | Hexagon screw |
| 17. | VOE955923 | [16] | Spring washer |
| 18. | VOE14608130 | [1] | Gear |
| 19. | VOE14882389 | [1] | Retaining ring |
| 20. | SA1036-00290 | [1] | Thrust ring |
| 21. | VOE992578 | [20] | Hexagon screw |
| 22. | VOE955925 | [20] | Spring washer |
| 23. | VOE14883848 | [2] | Plug |
| 24. | VOE983524 | [2] | O-ring |
| 25. | SA9415-43032 | [1] | Plug |
| 26. | VOE14608109 | [1] | Planet carrier |
| 27. | VOE14608110 | [1] | Planet carrier |
| 28. | VOE14505753 | [1] | Ring |
| 29. | VOE14608111 | [4] | Planetary gear |
| 30. | VOE14608112 | [4] | Needle bearing |
| 31. | VOE14608113 | [8] | Washer |
| 32. | VOE14608114 | [4] | Pin |
| 33. | SA9325-06012 | [4] | Spring pin |
| 34. | VOE14608116 | [1] | Planet carrier |
| 35. | VOE14608117 | [1] | Planet carrier |
| 36. | VOE14608118 | [3] | Planetary gear |
| 37. | VOE14608119 | [3] | Needle bearing |
| 38. | VOE14608120 | [6] | Washer |
| 39. | VOE14608121 | [3] | Pin |
| 40. | SA9325-06012 | [3] | Spring pin |
| 41. | VOE14608122 | [1] | Ring |
| 42. | VOE14608124 | [1] | Planet carrier |
| 43. | VOE14608125 | [1] | Planet Carrier |
| 44. | VOE14608126 | [3] | Planetary gear |
| 45. | VOE14608127 | [3] | Needle bearing |
| 46. | VOE14608128 | [6] | Washer |
| 47. | VOE14608129 | [3] | Pin |
| 48. | SA7117-30260 | [1] | Thrust ring |
| 49. | SA9325-06012 | [3] | Spring pin |
| 50. | VOE14608123 | [1] | Gear |
| 51. | VOE14608134 | [1] | Ring |
Exhibition
About shipping
FAQ
Q:What is your sample policy?
A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q:What are your main products?
A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.
If you need other excavator accessories, we can also supply according to your.
Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.
Q:How do I order?
A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.
Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
