SK200-8 Travel Device GP GM38VB Hydraulic Travel Motor YN15V00037F1 YN15V00037F2R YN15V00037F2C YN15V00037F2 Travel Reduction Gearbox

  • SK200-8 Travel Device GP GM38VB Hydraulic Travel Motor YN15V00037F1 YN15V00037F2R YN15V00037F2C YN15V00037F2 Travel Reduction Gearbox
  • SK200-8 Travel Device GP GM38VB Hydraulic Travel Motor YN15V00037F1 YN15V00037F2R YN15V00037F2C YN15V00037F2 Travel Reduction Gearbox
Place of Origin Made in china
Brand Name TCY
Model Number SK210-8, SK210LC-8, SK210-9, SK200-8, SK210D-8 ect.
Minimum Order Quantity 1
Price 800-2000
Packaging Details Wooden Case
Delivery Time 2-3/Negotiate
Payment Terms T/T,Alipay,Wechat ...etc.,

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Part Number YN15V00037F1 YN15V00037F2R YN15V00037F2C YN15V00037F2 Fit For SK210-8, SK210LC-8, SK210-9, SK200-8, SK210D-8 Ect.
Application Excavator Final Drive Condition New
MOQ 1 Weight 230kg-300kg
Packing 50*50*65 Warranty 6 Months
Highlight

YN15V00037F2C Travel Device GP Motor

,

YN15V00037F2R Travel Device GP Motor

,

YN15V00037F1 Travel Device GP Motor
Leave a Message
Product Description

TCY Aftermarket

SK200-8 Travel Device GP GM38VB Hydraulic Travel Motor YN15V00037F1 YN15V00037F2R YN15V00037F2C YN15V00037F2 Travel Reduction Gearbox







Product description


Model: SK210-8, SK210LC-8, SK210-9, SK200-8, SK210D-8 ect. Part name:Travel Motor Assy
Part NO.:YN15V00037F1 YN15V00037F2R YN15V00037F2C YN15V00037F2 MOQ:1PCS
Packing:Wooden case Place of Origin:China
Aftersale service provided:Online support  Apply To:Excavator Final Device
Delivery Time: 1-3 days Or negotiate Note: Other models can be consulted online

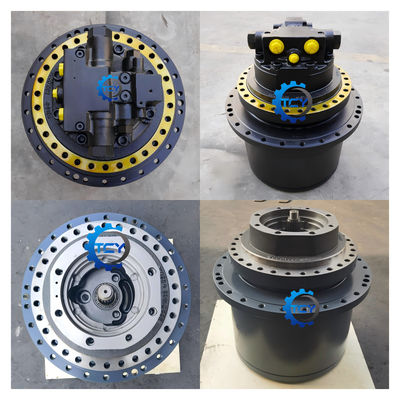

Product show





SK200-8 Travel Device GP GM38VB Hydraulic Travel Motor YN15V00037F1 YN15V00037F2R YN15V00037F2C YN15V00037F2 Travel Reduction Gearbox 0

. YN15V00037S001
[1]		 HUB KOB
3. YN15V00037S003 [1] FLANGE KOB Carrier
4. YN15V00037S004 [1] GEAR KOB Sun
5. YN15V00037S005 [3] GEAR KOB Planetary
6. YN15V00037S006 [3] PIN KOB
7. YN15V00037S007 [1] GEAR KOB Carrier
8. YN15V00037S008 [1] GEAR KOB Sun
9. YN15V00037S009 [3] GEAR KOB Planetary
0. YN15V00037S010 [3] PIN KOB
1. YN15V00037S011 [6] WASHER KOB Thrust
12. YN15V00037S012 [6] WASHER KOB Thrust
3. YN15V00037S013 [1] PLATE KOB
4. YN15V00037S014 [1] COVER KOB
15. YN15V00037S015 [1] COUPLING KOB
6. YN15V00037S016 [3] PIN KOB
7. YN15V00037S017 [3] PIN KOB
22. YN15V00037S022 [2] LOCK WASHER KOB Lock Washer
23. YN15V00037S023 [1] SHIM KOB
24. YN15V00037S024 [2] BALL BEARING KOB Ball
27. YN15V00037S027 [3] ROLLER BEARING KOB Needle
28. YN15V00037S028 [3] ROLLER BEARING KOB Needle
29. YN15V00037S029 [1] SEAL KOB Floating
30. 2441U995S121 [3] PLUG KOB
31. ZD12P01800 [3] O-RING KOB ID 17.8mmxOD 20.2mm
35. ZS23C10035 [18] SCREW,Hex Socket
Head,M10×35mm		 KOB Cap
36. ZR26X03200 [1] SNAP RING KOB Retaining
01. YN15V00037S101 [1] MANDREL KOB Spindle
02. YN15V00037S102 [1] SHAFT KOB
03. NSS [1] NOT SOLD SEPARAT CON Plate,Shoe
04. YN15V00037S104 [1] CYLINDER KOB Block
05. NSS [9] NOT SOLD SEPARAT CON Piston
06. NSS [9] NOT SOLD SEPARAT CON Shoe
07. YN15V00037S107 [1] PLATE KOB Retainer (For F1 ONLY)
  YN15V00037S098 [1] PLATE KOB Retainer(For F2 ONLY)
08. YN15V00037S108 [1] BALL KOB Joint (For F1 ONLY)
  YN15V00037S099 [1] BALL KOB Ball[(For F2 ONLY)
09. YN15V00037S109 [1] PLATE KOB
12. YN15V00037S112 [1] PISTON KOB
13. YN15V00037S113 [8] SPRING KOB
14. YN15V00037S114 [9] SPRING KOB
15. YN15V00037S115 [3] PLATE KOB Friction
116. YN15V00037S116 [4] PLATE KOB Separator
19. YN15V00037S119 [1] SHIM KOB
32. YN15V00009S027 [1] OIL SEAL KOB
33. YN15V00009S019 [1] RING KOB Retaining
35. YN15V00037S135 [1] RING KOB
37. 2436U279S3 [1] PLUG KOB
38. 2436U1749S17 [1] PLUG KOB
39. YN15V00037S139 [1] RING KOB
49. YN15V00037S149 [1] ROLLER BEARING KOB Roller Superseded by part number:26799950
50. YN15V00037S150 [1] ROLLER BEARING KOB Roller Superseded by part number:YN15V00009S032
61. NSS [1] NOT SOLD SEPARAT CON Piston
62. YN15V00037S162 [1] BALL KOB
63. NSS [1] NOT SOLD SEPARAT CON Seal
67. NSS [2] NOT SOLD SEPARAT CON Pivot
200. YN22V00036F1 [2] VALVE KOB Assy,Relief (See HC385)
301. YN15V00037S301 [1] FLANGE KOB
323. NSS [1] NOT SOLD SEPARAT CON Spool
324. YN15V00037S324 [2] PLUG KOB
325. YN15V00037S325 [2] SEAT KOB Spring
326. NSS [2] NOT SOLD SEPARAT CON Plug
327. NSS [2] NOT SOLD SEPARAT CON Valve
328. NSS [2] NOT SOLD SEPARAT CON Spring
329 YN15V00037S329 [2] O-RING,0.139"Thk x
1.296"ID,-219,Cl6,90

Duro
KOB Superseded by part number:ZD12P03400
330. YN15V00037S330 [2] SPRING KOB
331. NSS [2] NOT SOLD SEPARAT CON O-ring
341. YN15V00017SO33 [1] PIN KOB

343.		 ZS23C16040
[8]
CAPSCREW,Hex
Socket Head,M16x

40mm
KOB SCREW Cap
345. 2436U1427S25 [15] PLUG KOB
363. YN15V00037S363 [1] SPOOL KOB
364. 2436R874S3 [1] FLEXIBLE JOINT KOB Connector
365. 2436R874S6 [1] PIN KOB
366. 2436R874S7 [1] SPRING KOB
367. 2436R874S5 [1] SPRING SEAT KOB
368. 2436U1317S13 [2] PLUG KOB
369. ZD12PO1100 [2] O-RING KOB ID 10.8mm xOD 13.2mm
370. LC15V00023S062 [1] PLUG KOB
371. ZD12P01400 [2] O-RING KOB
372. LC15V00023S067 [2] RESTRICTOR KOB
373. LC15V00023S068 [2] SPRING KOB
374. YN15V00017SO38 [5] PLUG KOB
375. ZD12PO0800 [6] O-RING,1.9mm Thkx
7.8mm ID,90 Duro		 KOB ID 7.8mmxOD 9.7mm
376. GN15V00010S024 [3] RESTRICTOR KOB
377. YN15V00017S017 [3] CHECK VALVE KOB
378. YN15V00017S026 [3] SPRING KOB
  ZD12P01600
380. YN15V00037S380 [1] O-RING KOB
397. 2483U254S19 [1] Name Plate
398. YN15V00037S398 [4] Rivet
399. YN15VO0037S399 [1] Name Plate
  YN15V00037R400 [1] PISTON KOB Repair Kit Consists Of Ref.105x9,106x9
  YN15V00037R410 [1] PISTON KOB Repair Kit Consists Of Ref.161x1,163x1
  YN15V00037R420 [1] PLATE KOB Repair Kit Consists Of Ref.103x1,167x2
  YN15V00037R430 [1] VALVE
KOB Repair Kit Consists Of Ref.103x1,323x1,324x2,325x2,326x2,

327x2,328x2,329x2,330x2,331x2,341x1,343x8,345x15,363x1,364x1,
365x1,366x1,367x1,368x2,369x2,370x1,371x2,372x2,373x2,374x5,
375x6,376x3,377x3,378x3,379x1,380x1
