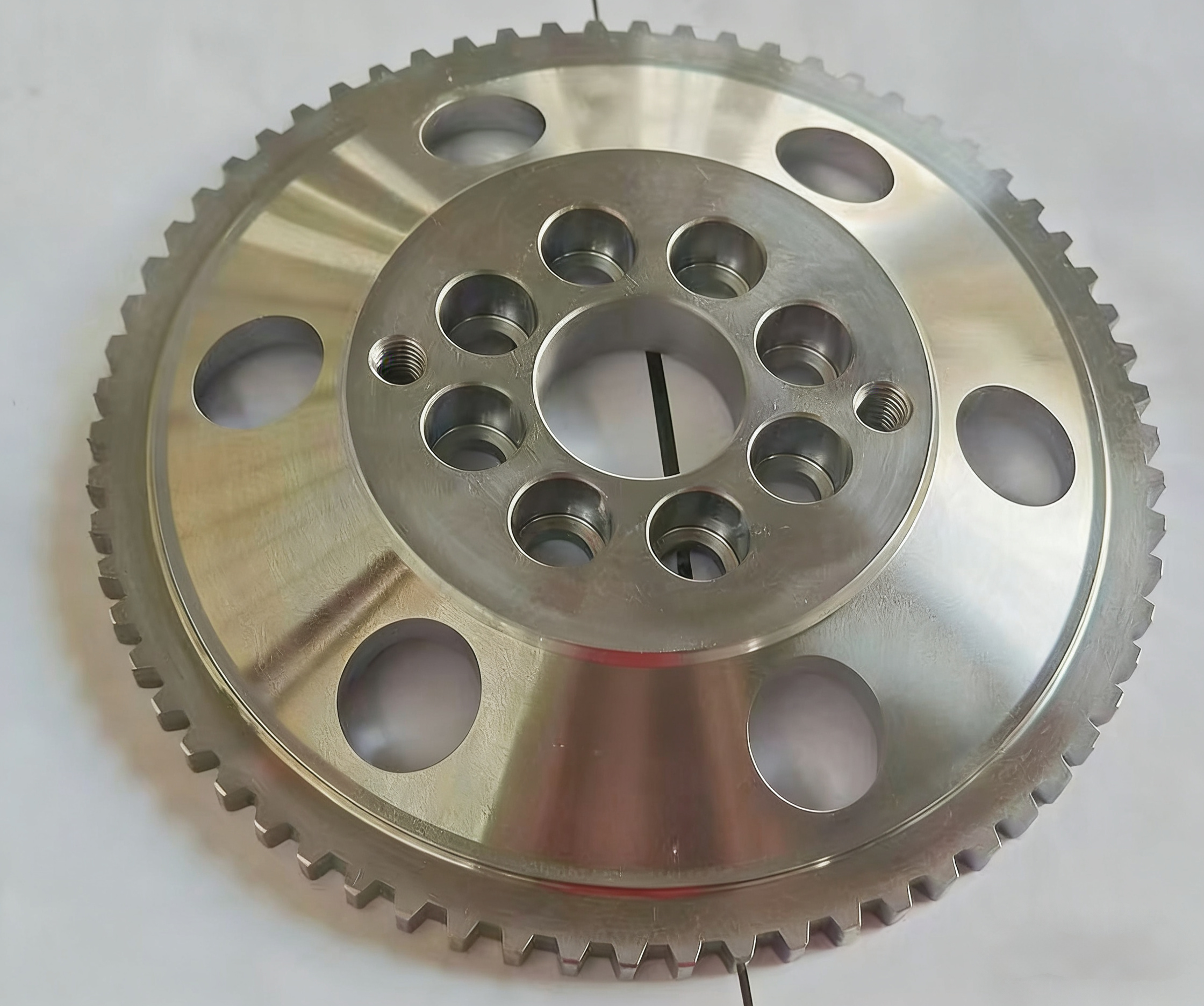

450/12702 CARRIER ANNULUS FOR JCB BACKHOE 3CX
| Place of Origin | Made in china |
|---|---|
| Brand Name | TCY |
| Model Number | JCB BACKHOE 3CX |
| Minimum Order Quantity | 1 |
| Packaging Details | Wooden Case |
| Delivery Time | 2-3/Negotiate |
| Payment Terms | T/T,Alipay,Wechat ...etc., Western Union, MoneyGram, D/P |
Product Details
| Model | JCB BACKHOE 3CX | Product Name | Carrier Annulus |
|---|---|---|---|
| Part NO. | 450/12702 | MOQ | 1PCS |
| Weight | 2KG | Condition | New |
| Brand Name | TCY |
Product Description
450/12702 CARRIER ANNULUS FOR JCB BACKHOE 3CX
| Model: 3CX | Part name:Carrier Annulus |
| Part NO.:450/12702 | MOQ:1PCS |
| Packing:Wooden case | Place of Origin:China |
| Aftersale service provided:Online support | Apply To:JCB BACKHOE 3CX |
| Delivery Time: 1-3 days Or negotiate | Note: Other models can be consulted online |
Product

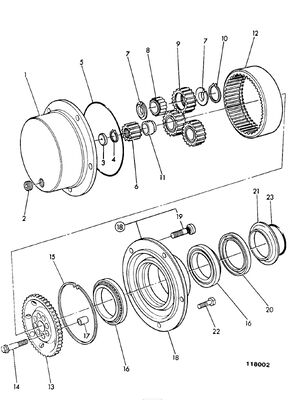

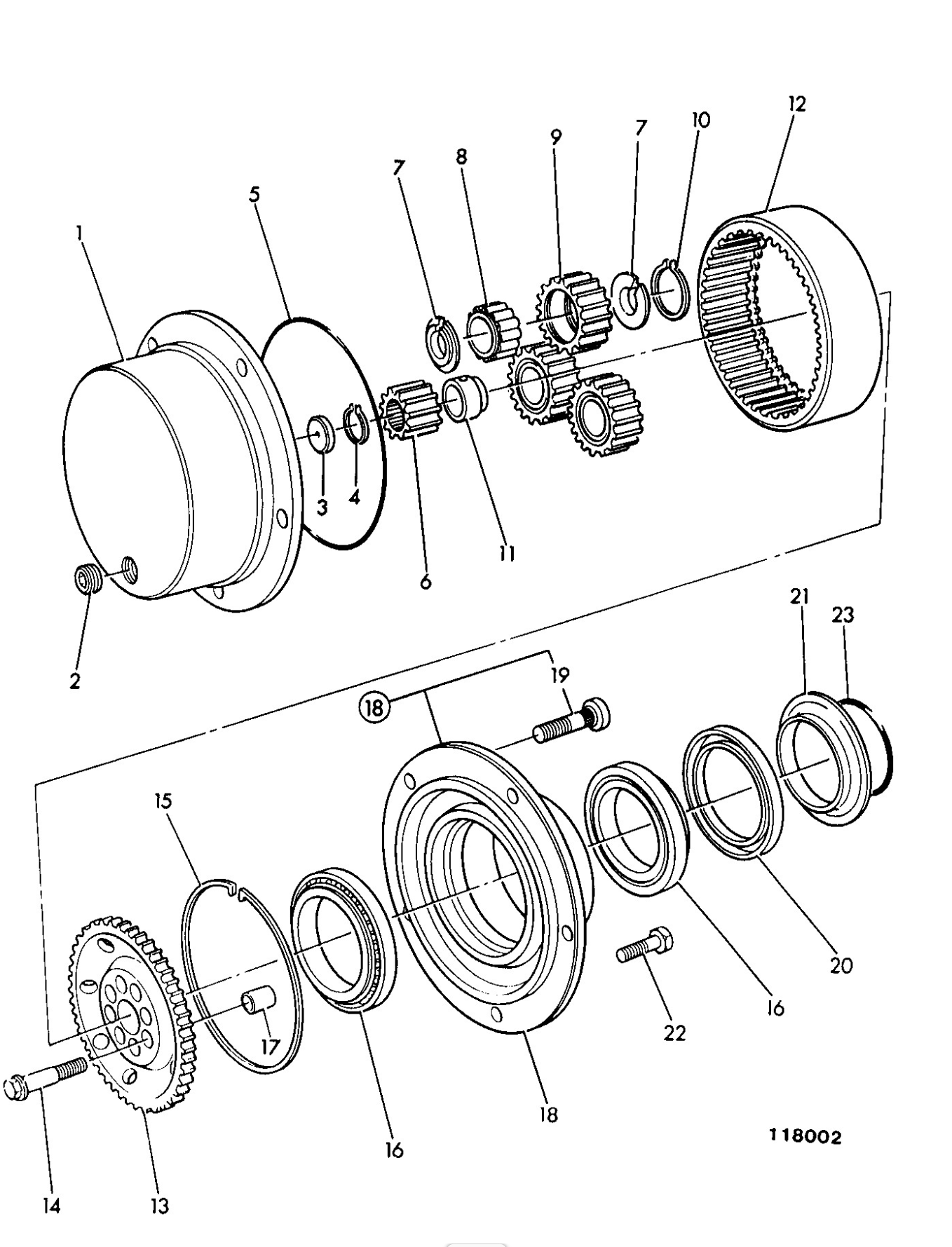

| Pos. | Part No | Qty | Parts name |
| 1 | 450/12401 | [2] | Carrier planetary hub |
| 2 | 826/00425 | [2] | Plug tapered 3/4"-14PTF |
| 3 | 450/10208 | [2] | Pad Thrust |
| 4 | 821/00216 | [2] | Circlip external |
| 5 | 828/00196 | [2] | O Ring |
| 6 | 450/12403 | [2] | Gear Sun |
| 7 | 821/00209 | [12] | Circlip |
| 8 | 907/50200 | [6] | Bearing Roller, Double Row |
| 9 | 450/10206 | [6] | Gear Planet |
| 10 | 2203/0054 | [6] | Circlip |
| 11 | 921/50000 | [2] | Spacer 32mm long |
| 12 | 450/10205 | [2] | Gear Annulus Ring |
| 13 | 450/12702 | [1] | Carrier Annulus |
| 14 | 826/01060 | [16] | Bolt M14 x 70mm long |
| 15 | 821/00210 | [2] | Circlip Internal Square Section |
| 16 | 907/52200 | [4] | Bearing Taper |
| 17 | 450/12703 | [8] | Dowel Hollow |
| 18 | 450/11100 | [2] | Hub c/w studs |
| 19 | 826/00923 | [5] | Stud Wheel |
| 20 | 904/50033 | [2] | Seal - Cassette |
| 22 | 1321/0407Z | [4] | Bolt Coated M10 x 25 |
Exhibition
Company Introduction
Packaging
FAQ
Q:What is your sample policy?
A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q:What are your main products?
A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.
If you need other excavator accessories, we can also supply according to your.
Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.
Q:How do I order?
A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.
Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
