SWING MOTOR R140LC-9 39Q4-10150 39Q4-10151 38Q4-10150 SWING DRIVE
| Place of Origin | Made in china |
|---|---|
| Brand Name | TCY |
| Minimum Order Quantity | 1 |
| Price | 350-800 |
| Packaging Details | Wooden Case |
| Delivery Time | 2-3/Negotiate |
| Payment Terms | T/T,Alipay,Wechat ...etc. |
Product Details
| Model | R140VS-9 R150VS-9 R140LC-9 | Part Number | 39Q4-10150 39Q4-10151 38Q4-10150 38Q4-10151 39Q4-11100 39Q4-11101 38Q4-11100 38Q4-11101 |
|---|---|---|---|
| Apply For | Hyundai HCE SWING DEVICE | Product Name | Swing Motor |
| Condition | New | Weight | 40KG |
| Wooden Box | 35*35*40 | Brand Name | TCY |
| Remark： | Other Models Can Be Communicated Online | Delivery Port | Guangzhou Ningbo Yiwu |
Product Description
SWING MOTOR R140LC-9 39Q4-10150 39Q4-10151 38Q4-10150 SWING DRIVE
| Model:R140VS-9 R150VS-9 R140LC-9 | Part name:Swing Motor |
| Apply for:Hyundai HCE SWING DEVICE | MOQ:1PCS |
| Packing:Wooden case | Place of Origin:China |
| Aftersale service provided:Online support | Apply To:Excavator Swing Drive |
| Delivery Time: 1-3 days Or negotiate | Note: Other models can be consulted online |

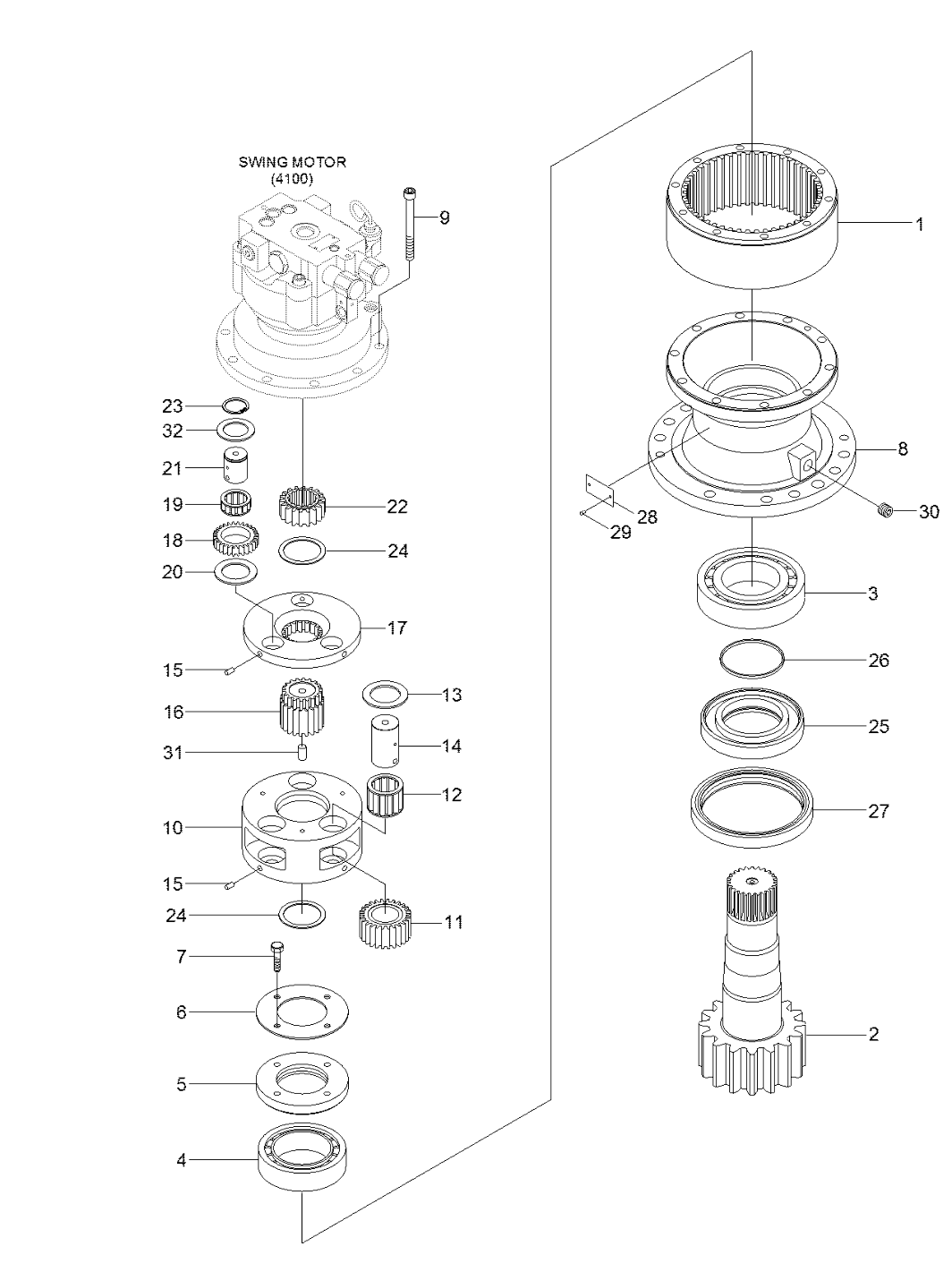

| Pos. | Part No | Qty | Parts name |
| *-2. | 39Q4-12100 | [1] | SWING REDUCTION GEAR |
| *-2. | 39Q4-12101 | [1] | SWING REDUCTION GEAR |
| 1 | 39Q4-12110 | [1] | GEAR-RING |
| 2 | 39Q4-12120 | [1] | SHAFT-DRIVE |
| 3 | 39Q6-12140 | [1] | BEARING-TAPER |
| 4 | 39Q4-12130 | [1] | BEARING-TAPER |
| 5 | 39Q4-12140 | [1] | RING-NUT |
| 6 | 39Q4-12150 | [1] | PLATE-LOCK |
| 7 | S017-080126 | [4] | BOLT-HEX |
| 8 | 39Q4-12160 | [1] | CASING |
| 9 | S109-141306 | [10] | BOLT-SOCKET |
| K10. | 39Q4-12180 | [1] | CARRIER 2 |
| K11. | 39Q4-12190 | [3] | GEAR-PLANETARY 2 |
| K12. | 39Q6-42280 | [3] | BEARING-NEEDLE 1 |
| K13. | 39Q4-12200 | [6] | WASHER-THRUST 2 |
| K14. | 39Q4-12210 | [3] | PIN-CARRIER 2 |
| K15. | S472-600364 | [6] | PIN-SPRING |
| K16. | 39Q4-12220 | [1] | GEAR-SUN 2 |
| K17. | 39Q4-12240 | [1] | CARRIER 1 |
| K18. | 39Q4-12250 | [3] | GEAR-PLANETARY 1 |
| K19. | 39Q4-12260 | [3] | BEARING-NEEDLE 1 |
| K20. | 39Q4-12270 | [3] | WASHER-THRUST 1 |
| K21. | 39Q4-12280 | [3] | PIN-CARRIER 1 |
| K22. | 39Q4-12290 | [1] | GEAR-SUN 1 |
| K23. | S751-032004 | [3] | RING-SNAP |
| K24. | 39Q4-12300 | [2] | PLATE-THRUST |
| 25 | 39Q4-12310 | [1] | SLEEVE |
| 26 | S632-095001 | [1] | O-RING |
| 27 | 39Q4-12320 | [1] | SEAL-OIL |
| 28 | 39Q4-12330 | [1] | NAME PLATE |
| 28 | 39Q4-12331 | [1] | NAME PLATE |
| 29 | 39Q6-41800 | [2] | RIVET |
| 30 | P220-430204 | [1] | PLUG-HEX |
| 31 | 39Q4-12340 | [1] | PIN-PARALLEL |
| K32. | 39Q4-12350 | [3] | WASHER-THRUST 1 |
| K. | 39Q4-12170 | [1] | CARRIER ASSY KIT 2 |
| K. | 39Q4-12230 | [1] | CARRIER ASSY KIT 1 |
FAQ
Q:What is your sample policy?
A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q:What are your main products?
A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.
If you need other excavator accessories, we can also supply according to your.
Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.
Q:How do I order?
A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.
Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
