130401-00026 130401-00026A K1004037A DX255LC DX255LC DX260 SWING REDUCTION GEAR FOR DOOSAN
| Place of Origin | Made in china |
|---|---|
| Brand Name | TCY |
| Model Number | DX255LC DX255LC DX260 |
| Minimum Order Quantity | 1 |
| Packaging Details | Wooden Case |
| Delivery Time | 2-3/Negotiate |
| Payment Terms | T/T,Alipay,Wechat ...etc., Western Union, MoneyGram, D/P |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Part NO. | 130401-00026 130401-00026A K1004037A | Product Name | Swing Reduction Gear |
|---|---|---|---|
| Model | DX255LC DX255LC DX260 | Weight | 300KG |
| Box Size | 56*56*76 | Condition | New |
| Apply For | Doosan Excavator |
Product Description
130401-00026 130401-00026A K1004037A DX255LC DX255LC DX260 SWING REDUCTION GEAR FOR DOOSAN
| Model: DX255LC DX255LC DX260 | Part name:Swing Reduction Gear |
| Part NO.:130401-00026 130401-00026A K1004037A | MOQ:1PCS |
| Packing:Wooden case | Place of Origin:China |
| Aftersale service provided:Online support | Apply To:CASE Excavator |
| Delivery Time: 1-3 days Or negotiate | Note: Other models can be consulted online |
Product

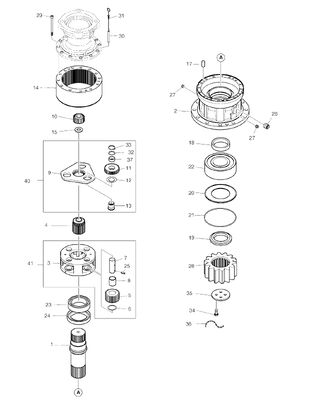

| Pos. | Part No | Qty | Parts name |
| -. | K1004037A | [1] | REDUCTION GEAR;SWING |
| 1 | K1004038B | [1] | SHAFT |
| 10 | K1004040B | [1] | GEAR;SUN NO.1 |
| 1 | K1002548 | [3] | GEAR;PLANET NO.1 |
| 12 | K1002549 | [3] | PLATE;SIDE |
| 13 | K1002550 | [3] | PIN |
| 14 | K1006981 | [1] | GEAR;RING |
| 15 | K1002552 | [1] | PLATE;THRUST |
| 17 | K1003384A | [4] | PIN;LOCK |
| 18 | K1002554A | [1] | SPACER |
| 19 | K1004041A | [1] | COLLAR |
| 2 | K1002539A | [1] | CASE |
| 20 | K1002556 | [1] | PLATE |
| 21 | K1002558 | [1] | RING;LOCK |
| 22 | K1002559 | [1] | BEARING |
| 23 | K1003682A | [1] | BEARING |
| 24 | K1005719 | [1] | SEAL,OIL |
| 25 | S5741361 | [4] | PIN;SPRING |
| 26 | 2181-1116D4 | [1] | PLUG |
| 27 | S5810010 | [3] | PLUG |
| 28 | K1004042A | [1] | GEAR;PINION |
| 29 | S2226671 | [12] | BOLT;SOCKET |
| 3 | K1002540A | [1] | CARRIER NO.2 |
| 30 | 140-01343A | [1] | PIPE |
| 31 | 119-00020 | [1] | BAR;LEVEL |
| 32 | K1002567 | [3] | PLATE;SIDE |
| 33 | S6500600 | [3] | .RING,RETAINER |
| 34 | 2120-1363 | [4] | BOLT |
| 35 | 2403-1039A | [1] | PLATE;LOCK |
| 36 | 2126-9001 | [1] | WIRE |
| 37 | K1003386 | [3] | BUSH |
| 4 | K1002541A | [1] | GEAR;SUN NO.2 |
| 40 | K9004901 | [1] | CARRIER NO.1 ASS'Y |
| 41 | K9004902 | [1] | CARRIER NO.2 ASS'Y |
| 5 | K1002542 | [4] | GEAR;PLANET NO.2 |
| 6 | K1002543 | [4] | PLATE;SIDE NO.2 |
| 7 | K1002544 | [4] | PIN |
| 8 | K1002545 | [4] | BUSH |
| 9 | K1002546 | [1] | CARRIER NO.1 |
Related Products
Exhibition
Company Introduction
Packaging
FAQ
Q:What is your sample policy?
A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q:What are your main products?
A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.
If you need other excavator accessories, we can also supply according to your.
Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.
Q:How do I order?
A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.
Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
