39QB-41100 39QB-42100 TRAVEL REDUCTION GEAR for HX480L HX520L R480C9MH R480LC9
| Brand Name | TCY |
|---|---|
| Model Number | HX480L HX520L R480C9MH R480LC9 R480LC9A R480LC9S R500LC7 R520LC9 R520LC9A R520LC9S |
| Minimum Order Quantity | 1 |
| Price | 1000-3000 |
| Packaging Details | Wooden Case |
| Delivery Time | 2-3/Negotiate |
| Payment Terms | T/T,Alipay,Wechat ...etc., |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Part Number | 39QB-41100 39QB-42100 | Part Name | TRAVEL REDUCTION GEAR |
|---|---|---|---|
| Apply For | HX480L HX520L R480C9MH R480LC9 | Wooden Box Size | 63*63*76 |
| Weight | 480kg | Condition | New |
| MOQ | 1 | Application | Excavator Final Drive |
Product Description

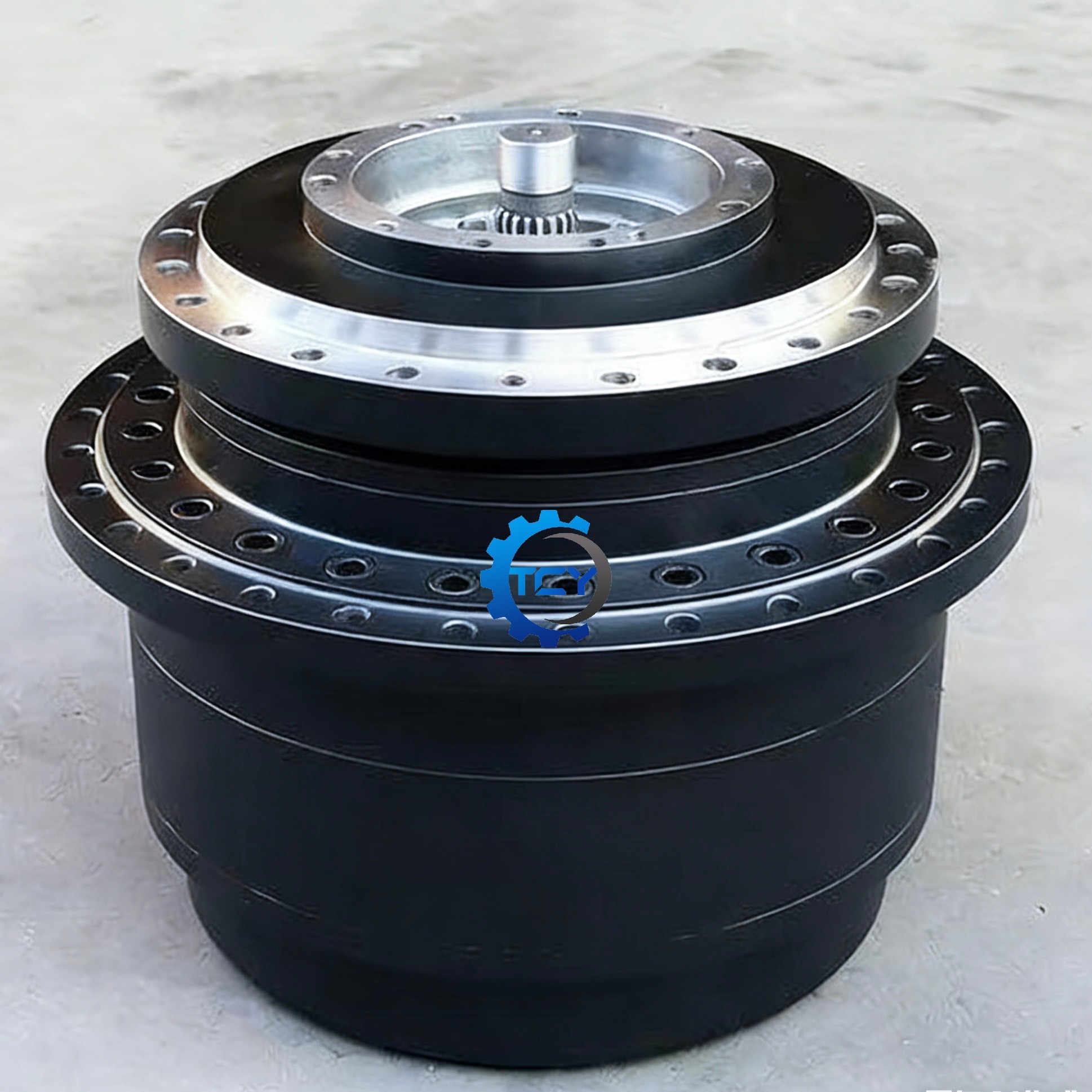

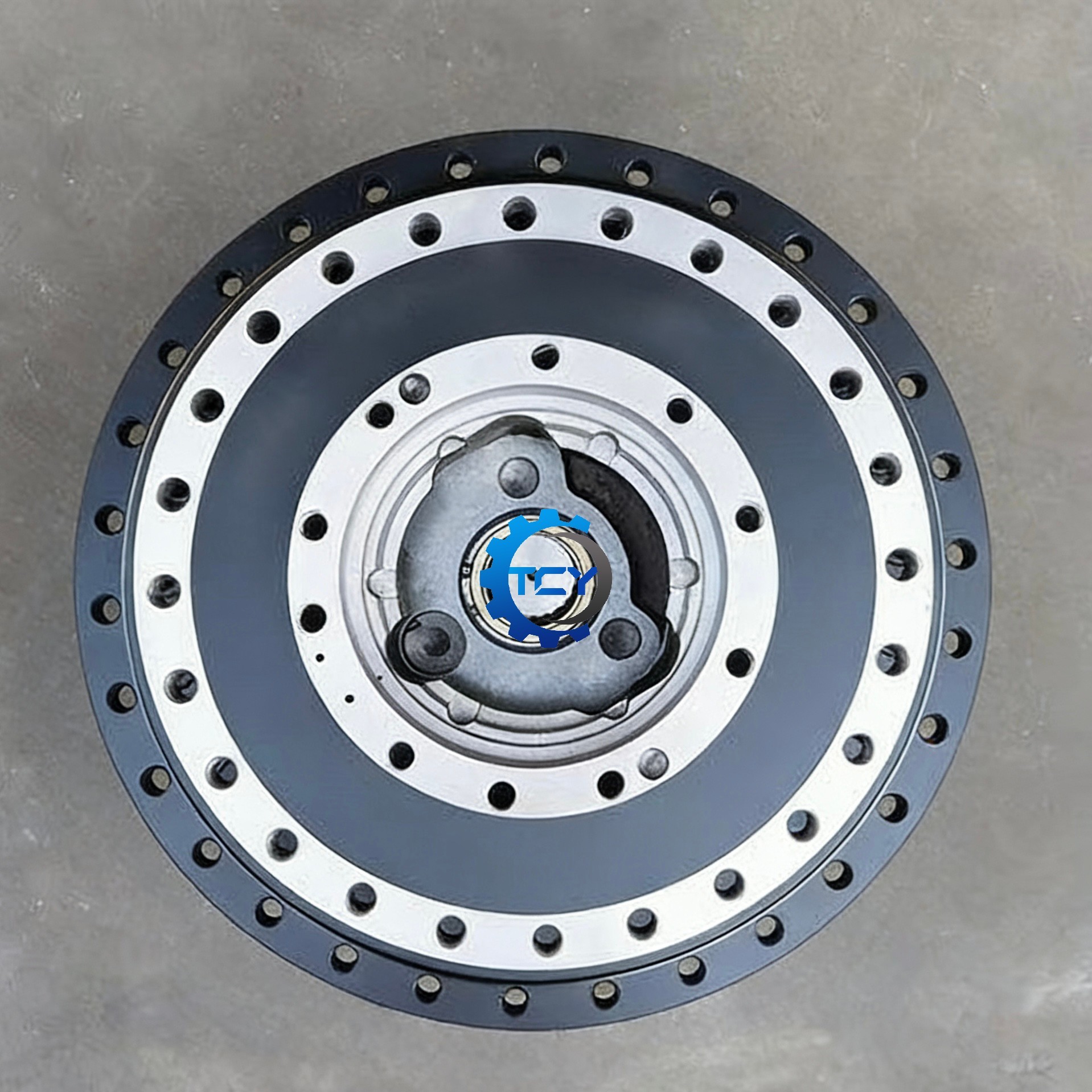

39QB-41100 39QB-42100 TRAVEL REDUCTION GEAR for HX480L HX520L R480C9MH R480LC9
Model: HX480L HX520L R480C9MH R480LC9 R480LC9A R480LC9S R500LC7 R520LC9 R520LC9A R520LC9S |
Part name:Travel gear |
Part NO:39QB-41100 39QB-42100 |
MOQ:1PCS |
Packing:Wooden case |
Place of Origin:Made in China |
Aftersale service provided:Online support |
Apply To:Excavator Final Device |
Delivery Time: 1-3 days Or negotiate |
Note: Other models can be consulted online |
Product
| Pos. | Part No | Qty | Parts name | |
| * | @ | [1] | TRAVEL MOTOR ASSY | |
| *-2 | 39QB-42100 | [1] | TRAVEL REDUCTION GEAR | |
| 1 | 39QB-42110 | [1] | GEAR-RING | |
| 2 | 39QB-42120 | [2] | BEARING-BALL | |
| 3 | 39Q8-42130 | [2] | SEAL ASSY-FLOATING | |
| 4 | 39QB-42130 | [1] | NUT-RING | |
| 5 | 39QB-42140 | [1] | PLATE-LOCK | |
| 6 | S017-120206 | [4] | BOLT-HEX | |
| 7 | S482-130020 | [1] | PIN-PARALLEL | |
| 8 | 39QB-42150 | [1] | HOUSING | |
| 9 | S109-120356 | [16] | BOLT-SOCKET | |
| 10 | 39QA-42360 | [1] | COUPLING | |
| K11 | 39QB-42170 | [1] | CARRIER | |
| K12 | 39QB-42180 | [4] | GEAR-PLANATARY | |
| K13 | 39Q8-42210 | [4] | BEARING-NEEDLE | |
| K14 | 39QB-42190 | [8] | WASHER-THRUST | |
| K15 | 39QB-42200 | [4] | PIN-CARRIER | |
| K16 | S472-910404 | [4] | PIN-SPRING | |
| K17 | 39Q8-42240 | [4] | PIN-SOLID | |
| 18 | 39QB-42210 | [1] | GEAR-SUN | |
| K19 | 39QB-42230 | [1] | CARRIER NO.1 | |
| K20 | 39QB-42240 | [3] | GEAR-PLANETARY NO.1 | |
| K21 | 39QB-42250 | [3] | BEARING-NEEDLE | |
| K22 | 39Q8-12230 | [6] | WASHER-THRUST | |
| K23 | 39QB-42260 | [3] | PIN-CARRIER | |
| K24 | S472-600504 | [3] | PIN-SPRING | |
| 25 | 39QB-42270 | [1] | GEAR-SUN NO.1 | |
| K26 | 39Q8-42330 | [1] | PLATE-THRUST | |
| 27 | 39Q6-42320 | [1] | PLATE-THRUST | |
| 28 | 39QB-42281 | [1] | COVER | |
| 29 | 39QB-42290 | [1] | SEAL-COVER | |
| 30 | S109-100256 | [16] | BOLT-SOCKET | |
| 31 | S109-201206 | [25] | BOLT-SOCKET | |
| 32 | P220-110205 | [3] | PLUG-HEX | |
| 33 | S602-045001 | [1] | RING-RETAINING,C TYPE | |
| N34 | 39QB-42350 | [1] | NAME PLATE | |
| 35 | 39Q6-41800 | [2] | RIVET | |
| 36 | S631-024001 | [3] | O-RING | |
| K | 39QB-42220 | [1] | CARRIER ASSY KIT 1 | |
| K | 39QB-42160 | [1] | CARRIER ASSY KIT 2 |
Exhibition
Shipping
FAQ
Q:What is your sample policy?
A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q:What are your main products?
A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.
If you need other excavator accessories, we can also supply according to your.
Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.
Q:How do I order?
A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.
Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
