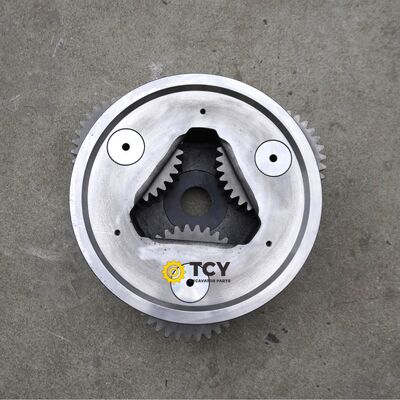

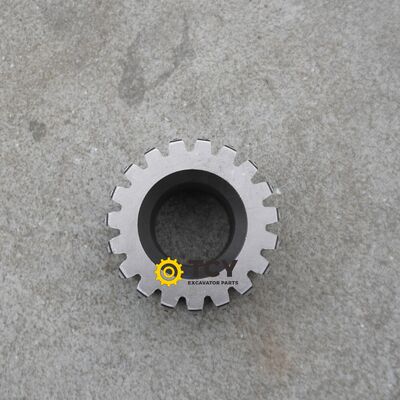

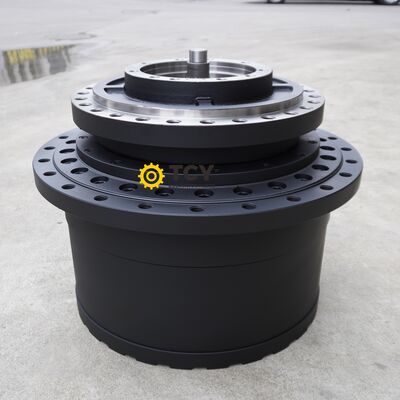

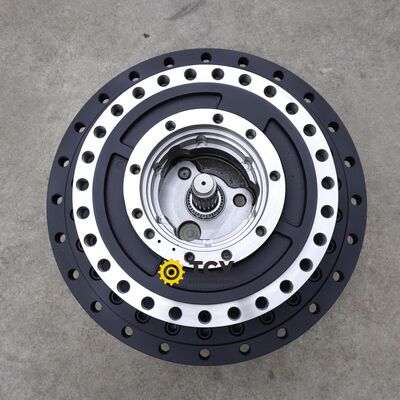

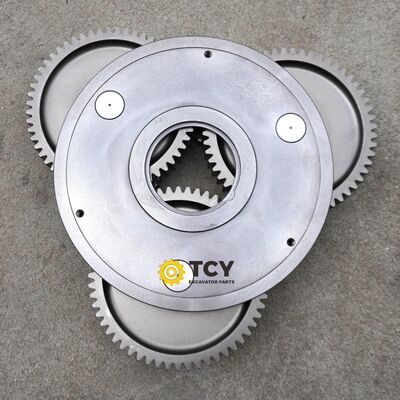

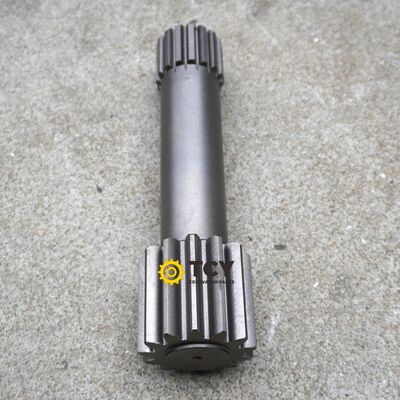

LS53D00007F1 MOTOR REDUCT ASSY FOR SK460-8 SK485-8 SK480-8 EXCAVATOR TRAVEL REDUCTION GEARBOX
| Brand Name | TCY |
|---|---|
| Model Number | GM85 |
| Minimum Order Quantity | 1 |
| Price | 1000-3000 |
| Packaging Details | Wooden Case |
| Delivery Time | 2-3/Negotiate |
| Payment Terms | T/T,Alipay,Wechat ...etc., |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Part Number | LS53D00007F1 | Part Name | MOTOR REDUCT ASSY |
|---|---|---|---|
| Apply For | SK460-8 SK485-8 SK480-8 | Wooden Box Size | 63*63*76 |
| Weight | 480kg | Condition | New |
| MOQ | 1 | Application | Excavator Final Drive |
Product Description
LS53D00007F1 MOTOR REDUCT ASSY FOR SK460-8 SK485-8 SK480-8 EXCAVATOR TRAVEL REDUCTION GEARBOX
Model: SK460-8 SK485-8 SK480-8 |
Part name:Travel Motor with gearbox |
Part NO:LS53D00007F1 |
MOQ:1PCS |
Packing:Wooden case |
Place of Origin:Made in China |
Aftersale service provided:Online support |
Apply To:Excavator Final Device |
Delivery Time: 1-3 days Or negotiate |
Note: Other models can be consulted online |
Product
| Pos. | Part No | Qty | Parts name |
| - | 130426-00010 | [1] | - |
| - | 130426-00010A | [1] | - |
| - | K1038203 | [1] | SWING REDUCTION GEAR ASS'Y |
| 1 | K1038206 | [1] | CASING |
| 10 | K1038205 | [1] | CARRIER NO.2 |
| 11 | 2114-1901A | [4] | WASHER;THRUST NO.2 |
| 12 | 104-00050 | [4] | GEAR;PLANET NO.2 |
| 13 | 110-00219 | [4] | BUSH NO.2 |
| 14 | K1038208 | [4] | PIN NO.2 |
| 15 | S5741200 | [4] | PIN;SPRING |
| 16 | S0121061 | [1] | BOLT |
| 17 | 114-00548 | [1] | WASHER;THRUST NO.3 |
| 18 | 104-00048 | [1] | GEAR;SUN NO.2 |
| 19 | 2705-1030 | [4] | PIN;KNOCK |
| 2 | K1038207 | [1] | SHAFT;DRIVE |
| 20 | 100502-00001 | [1] | - |
| 20 | K1038204 | [1] | CARRIER NO.1 |
| 21 | 114-00527 | [4] | WASHER;THRUST NO.1 |
| 21 | 114-00527 | [3] | WASHER;THRUST NO.1 |
| 22 | 130424-00001 | [4] | - |
| 22 | 104-00049A | [3] | GEAR;PLANET NO.1 |
| 23 | 120501-00009 | [4] | - |
| 23 | 123-00435A | [3] | PIN ASS'Y NO.1 |
| 24 | 120107-00002 | [16] | - |
| 24 | S2217471 | [16] | BOLT;SOCKET |
| 25 | 130425-00001 | [1] | - |
| 25 | 104-00047A | [1] | GEAR;SUN NO.1 |
| 26 | S6500450 | [1] | RING;SNAP |
| 27 | 2181-1116D2 | [2] | PLUG |
| 28 | 2181-1116D4 | [1] | PLUG |
| 29 | 2140-1406 | [1] | PIPE;LEVEL GAUGE |
| 3 | 2412-1040 | [1] | PLATE |
| 30 | 2119-1065 | [1] | GAUGE;LEVEL |
| 31 | 120811-00001 | [1] | - |
| 31 | S5231090 | [1] | WASHER;DOUBLE TAP |
| 32 | 120-00144 | [8] | BOLT |
| 33 | 120816-00001 | [1] | - |
| 4 | 2109-9033 | [1] | BEARING;ROLLER |
| 5 | K1038685 | [1] | PLATE;COVER |
| 51 | K9008337 | [1] | CARRIER NO1 ASS'Y |
| 51 | 100502-00022 | [1] | - |
| 52 | K9008338 | [1] | CARRIER NO2 ASS'Y |
| 6 | S6500380 | [3] | RING;SNAP |
| 6 | S6500380 | [4] | RING;SNAP |
| 7 | 2180-1254 | [1] | SEAL;OIL |
| 8 | 109-00174 | [1] | BEARING;ROLLER |
| 9 | K1038210 | [1] | GEAR;RING |
| 9 | 130422-00010 | [1] | - |
| 9 | 130422-00010A | [1] | - |
Exhibition
Shipping
FAQ
Q:What is your sample policy?
A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q:What are your main products?
A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.
If you need other excavator accessories, we can also supply according to your.
Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.
Q:How do I order?
A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.
Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
