24100J16661F4 SWING REDUCTION ASSEMBLY LC15V00003F1 LC15V00003F2R LC15V00003F2C FOR SK290LC SK290LC-6E SK330LC-6E KOBELCO
| Place of Origin | Made in china |
|---|---|
| Brand Name | TCY |
| Model Number | SK290LC SK290LC-6E SK330LC-6E |
| Minimum Order Quantity | 1 |
| Packaging Details | Wooden Case |
| Delivery Time | 2-3/Negotiate |
| Payment Terms | T/T,Alipay,Wechat ...etc., Western Union, MoneyGram, D/P |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Swing Motor | Part NO. | 24100J16661F4 LC15V00003F1 LC15V00003F2R LC15V00003F2C |
|---|---|---|---|
| Model | SK290LC SK290LC-6E SK330LC-6E | Weight | 300KG |
| Box Size | 55*55*68 | Condition | New |
| Brand Name | TCY | Apply For | KOBELCO Excavator |
Product Description

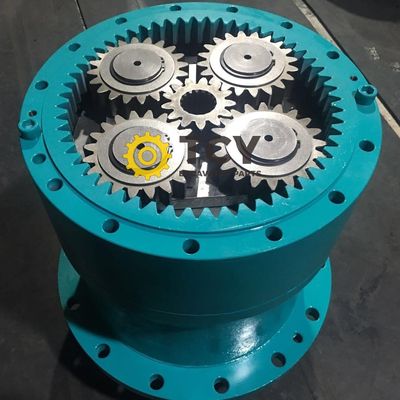

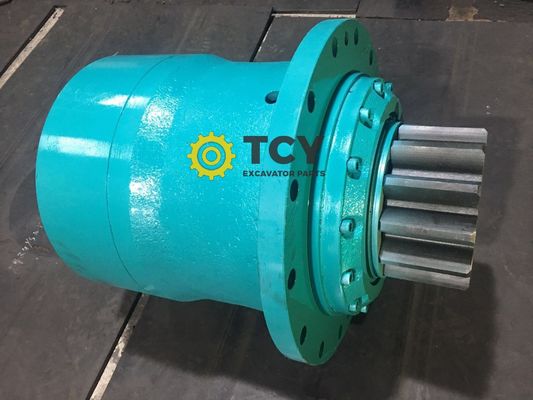

24100J16661F4 SWING REDUCTION ASSEMBLY LC15V00003F1 LC15V00003F2R LC15V00003F2C FOR SK290LC SK290LC-6E SK330LC-6E KOBELCO
| Model: SK290LC SK290LC-6E SK330LC-6E | Part name:Swing Device |
| Part NO.:24100J16661F4 LC15V00003F1 LC15V00003F2R LC15V00003F2C ect~ | MOQ:1PCS |
| Packing:Wooden case | Place of Origin:China |
| Aftersale service provided:Online support | Apply To:Sany Excavator |
| Delivery Time: 1-3 days Or negotiate | Note: Other models can be consulted online |

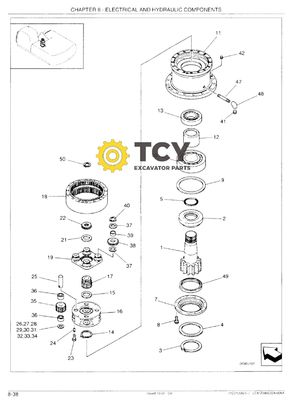

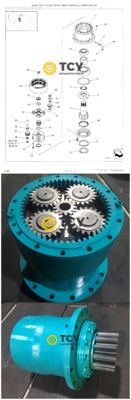

Product Show
| Pos. | Part No | Qty | Parts name | Comments |
| 24100J16661F4 | [1] | HYDRAULIC MOTOR | KOB ASSEMBLY,SWING | |
| 1. | 2410J549 | [1] | FINGERASSY | KOB SHAFT,PINION |
| 2. | 2418P27419 | [1] | SLEEVE | KOB |
| 3. | 2418R597D25 | [1] | LOCKING RING | KOB SNAP RING |
| 4. | 2418T24206 | [1] | PLATE | KOB |
| 5. | ZD11G14000 | [1] | O-RING,13940mm ID×14560mm OD× 3.10mm |
KOB ID 139.4±1.12×OD 145mm |
| 7. | 2418N3633 | [1] | RETAINER | KOB |
| 8. | ZS23C12040 | [14] | SCREW,Hex Socket Head,M12×40mm | KOB M12x1.75x40mm |
| 2418T22950 | ||||
| 10. | R25P0047D12 | [1] | BEARING | KOB SPHERICAL BEARING |
| 11. | 2414J2542 | [1] | BEARING ASSY | KOB HOUSING |
| 12. | 2418T22951 | [1] | SPACER | KOB |
| 13. | 25Z494D16 | [1] | BEARING | KOB |
| 14. | ZR16X12000 | [1] | SNAP RING | KOB Retaining-ID 113×OD 120x Th 4.0mm |
| 15 | 2418T22971 | [1] | SPACER | KOB |
| 16 | 2413J382 | [1] | DIFF SPIDER | KOB |
| 17. | 2401P1387 | [1] | SUN GEAR | KOB |
| 18 | 2401J152 | [1] | RING GEAR | KOB INTERNAL |
| 19 | 2413N491F1 | [1] | SPIDER | KOBASSEMBLY |
| 21 | 2418T22970 | [1] | SPACER | KOB |
| 22 | 2401P1388 | [1] | SUN GEAR | KOB |
| 23 | ZS13C10025 | [8] | CAPSCREW | KOB SCREW M10x1.50x25mm Superseded by part number ZS18C10025 |
| 24. | 2418T22949 | [4] | LOCKING PLATE | KOB |
| 25. | 2410T493 | [4] | SHAFT | KOB |
| 26 | 2420T7753D1 | [1] | SHIM | KOB(1.0) |
| 27 | 2420T7753D2 | [1] | SHIM | KOB(1.1) |
| 28 | 2420T7753D3 | |||
| 29 | 2420T7753D4 | |||
| 30 | 2420T7753D5 | |||
| 31 | 2420T7753D6 | |||
| 32 | 2420T7753D7 | |||
| 33 | 2420T7753D8 | |||
| 34 | 2420T7753D9 | [1] | SHIM | KOB(1.8) |
| 35 | 2401P1393 | [4] | PINION | KOB PLANETARY |
| 36. | 2425R221 | [8] | BEARING ASSY | KOB |
| 2418T22960 | ||||
| 38. | 2401P1394 | [4] | PINION | KOB PLANETARY |
| 39 | 2425R218 | [4] | NEEDLE BEARING | KOB |
| 40 | ZR16X06500 | |||
| 41. | ZE82T12000 | [1] | PLUG | KOB 3/4"PT |
| 42 | ZS83C20020 | [2] | SCREW | KOB Set--M20×2.50x20mm |
| 47 | 2420T6698D1 | [1] | PIPE | KOB |
| 48. | ZG31U12000 | [1] | ELBOW | KOB |
| 49 | 2418Z1448 | [1] | SEAL | KOB OIL SEAL |
| 50 | ZR16X04500 | [1] | RING | KOB Retaining--ID 45×OD 58xTh 1.8mm |
| 51 | 24100J13528R100 | [1] | REPAIR KIT | KOB Includes 26-34 |
