31Q8-11141 SWING REDUCTION GEAR 31Q8-10140 for Hyundai Excavator R290LC-9 R300LC-9A R290LC-7A R300LC-7 R300LC-9S R305LC-7
| Place of Origin | Made in china |
|---|---|
| Brand Name | TCY |
| Model Number | R290LC-9 R300LC-9A R290LC-7A R300LC-7 R300LC-9S R305LC-7 |
| Minimum Order Quantity | 1 |
| Price | 500-2000 |
| Packaging Details | Wooden Case |
| Delivery Time | 2-3/Negotiate |
| Payment Terms | T/T,Alipay,Wechat ...etc. |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Part Number | 31q8-10140 31q8-10141 31q8-10142 31q8-11141 | Model | R290LC-9 R300LC-9A R290LC-7A R300LC-7 R300LC-9S R305LC-7 |
|---|---|---|---|
| Product Name | Swing Reduction Gear | MOQ | 1PCS |
| Condition | New | Weight | 300KG |
| Delivery | 1~3 Days | Delivery Port | Guangzhou Ningbo Yiwu |
Product Description
TCY 31Q8-11141 SWING REDUCTION GEAR 31Q8-10140 for Hyundai Excavator R290LC-9 R300LC-9A R290LC-7A R300LC-7 R300LC-9S R305LC-7
| Model:R290LC-9 R300LC-9A R290LC-7A R300LC-7 R300LC-9S R305LC-7 | Part name:Swing Reduction Gearbox |
| Part NO.:39Q8-12101 | MOQ:1PCS |
| Packing:Wooden case | Weight:350KG |
| Aftersale service provided:Online support | Apply To:Excavator Swing Drive |
| Delivery Time: 1-3 days Or negotiate | Note: Other models can be consulted online |

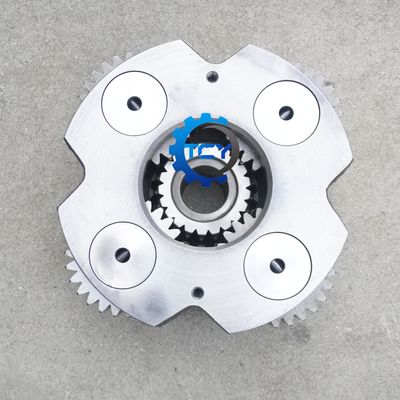

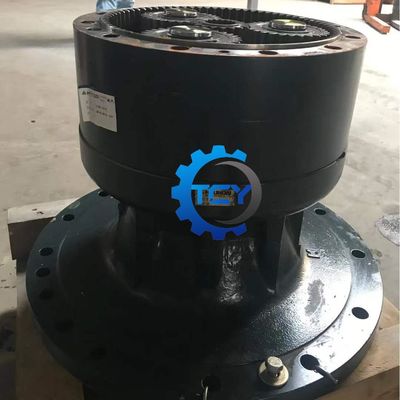

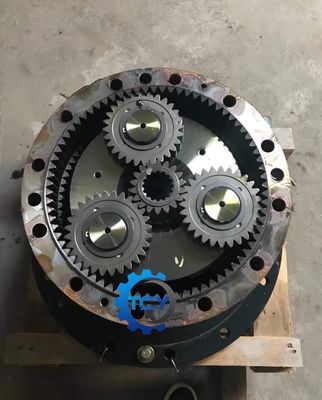

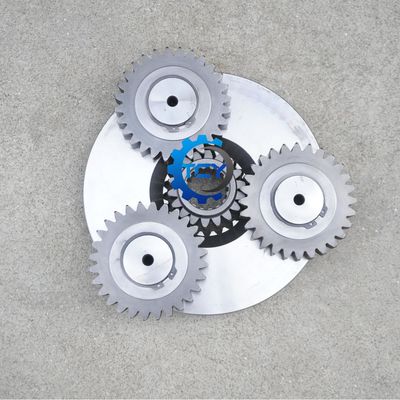

Product picture
| N*. | 31N8-10200 | SWING MOTOR ASSY | |
| *-1. | 31Q8-11141 [1] SWING REDUCTION GEAR | ||
| 1. | XKAQ-00451 [1] CASING | ||
| 2. | XKAQ-00760 [1] SHAFT-DRIVE | ||
| 3. | XKAQ-00146 [1] BEARING-ROLLER | ||
| 4. | XKAQ-00149 [1] SEAL-OIL | ||
| 5. | XKAQ-00027 [1] BEARING-ROLLER | ||
| 6. | XKAQ-00467 [1] CARRIER ASSY 2 | ||
| 7. | XKAQ-00468 [1] CARRIER-2 | ||
| 8. | XKAQ-00469 [4] GEAR-PLANET 2 | ||
| 9. | XKAQ-00470 [4] PIN ASSY 2 | ||
| N10. | XKAQ-00471 [1] PIN-2 | ||
| N11. | XKAQ-00472 [1] BUSHING 2 | ||
| 12. | XKAQ-00435 [8] WASHER-THRUST | ||
| 13. | XKAQ-00050 [4] PIN-SPRING | ||
| 14. | XKAQ-00473 [1] CARRIER ASSY 1 | ||
| 15. | XKAQ-00453 [1] CARRIER-1 | ||
| 16. | XKAQ-00454 [3] GEAR-PLANET 1 | ||
| 17. | XKAQ-00440 [3] PIN ASSY-1 | ||
| N18. | XKAQ-00441 [3] PIN-1 | ||
| N19. | XKAQ-00079 [3] BUSHING-1 | ||
| 20. | XKAQ-00417 [3] PLATE-SIDE 1 | ||
| 21. | XKAQ-00416 [3] PLATE-SIDE 2 | ||
| 22. | XKAQ-00041 [3] RING-STOP | ||
| 23. | XKAQ-00048 [3] PIN-SPRING | ||
| 24. | XKAQ-00455 [1] GEAR-SUN 2 | ||
| 25. | XKAQ-00456 [1] GEAR-SUN 1 | ||
| 26. | XKAQ-00457 [1] RING-GEAR | ||
| 27. | XKAQ-00466 [12] BOLT-SOCKET | ||
| 28. | XKAQ-00626 [1] COVER PLATE | ||
| 29. | XKAQ-00064 [8] BOLT-HEX | ||
| 30. | XKAQ-00627 [1] SPACER | ||
| 31. | XKAQ-00628 [1] RING-SPACER | ||
| 32. | XKAQ-00447 [1] PLATE-THRUST-3 | ||
| 33. | XKAQ-00629 [1] GEAR-PINION | ||
| 34. | XKAQ-00761 [1] PLATE-LOCK | ||
| 35. | XKAQ-00756 [4] BOLT-HEX | ||
| 36. | XKAQ-00049 [1] PLUG |
||
| N39. | XKAQ-00631 [4] BUSHING-2 | ||
| 40. | XKAQ-00800 [1] AIR BREATHER ASSY | ||
Company
Packaging
FAQ
Q:What is your sample policy?
A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q:What are your main products?
A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.
If you need other excavator accessories, we can also supply according to your.
Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.
Q:How do I order?
A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.
Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
