295-9406 295-9405 Swing Motor Cat374d E374D Cat 374F E374F 295-6146 295-6147 Swing Device
| Place of Origin | Made in china |
|---|---|
| Brand Name | TCY |
| Model Number | M2X210 |
| Minimum Order Quantity | 1 |
| Price | 500-2000 |
| Packaging Details | Wooden Case |
| Delivery Time | 2-3/Negotiate |
| Payment Terms | T/T,Alipay,Wechat ...etc., Western Union, MoneyGram, D/P |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Swing Motor | Model | Cat374d E374D Cat 374F E374F |
|---|---|---|---|
| Part NO. | 295-9406 295-9405 ECT. | Box Size | 45*45*55 |
| Weight | 80KG | Condition | New |
| Brand Name | TCY | Apply For | Caterpillar Excavator |
| Highlight | 295-9405 Swing Motor,295-6146 Swing Motor,295-9406 Swing Motor |
||
Product Description
TCY 295-9406 295-9405 Swing Motor Cat374d E374D Cat 374F E374F 295-6146 295-6147 Swing Device
| Model: Cat374d E374D Cat 374F E374F | Part name:Swing motor |
| Part NO.:295-9406 295-9405 2959406 2959405 | MOQ:1PCS |
| Packing:Wooden case | Place of Origin:China |
| Aftersale service provided:Online support | Apply To:Sany Excavator |
| Delivery Time: 1-3 days Or negotiate | Note: Other models can be consulted online |

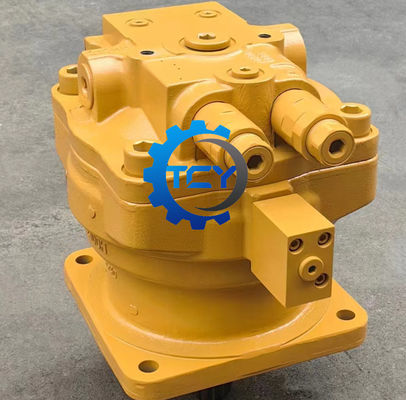

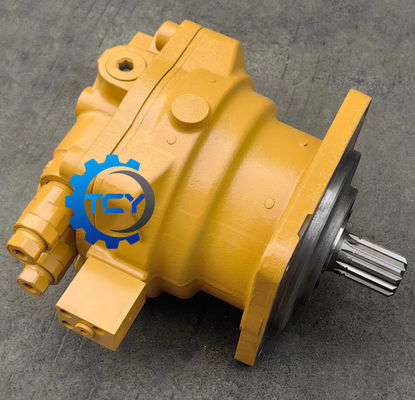

Product Show

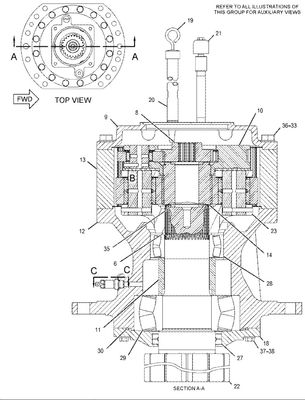

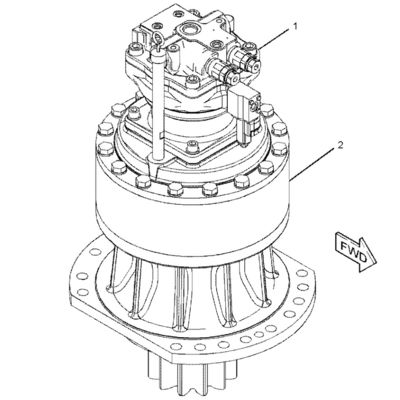

| Pos. | Part No. | QTY | Parts name |
| 1. | 6V-7238 | [1] | VALVE-SHUTOFF (HYDRAULIC OIL) |
| 2. | 7Y-0225 | [3] | SHAFT-PLANETARY |
| 3. | 093-1730 | [1] | RING-RETAINING |
| 4 | 094-0574 | [1] | RING-RETAINING |
| 5 | 094-0611 | [6] | WASHER (47.3X76X1-MM THK) |
| 6 | 096-2653 | [1] | RING-RETAINING |
| 7 | 110-7053 | [3] | GEAR-PLANETARY (23-TEETH) |
| 8 | 136-2889 | [1] | GEAR-SUN (23-TEETH) |
| 9 | 136-2890 | [1] | COVER-HOUSING |
| 10 | 136-2891 | [1] | CARRIER-PLANETARY |
| 11 | 136-2893 | [1] | SPACER-SPECIAL |
| 12. | 136-2894 | [1] | HOUSING |
| 13. | 136-2896 | [1] | GEAR-RING (70-TEETH) |
| 14. | 136-2897 | [1] | GEAR-SUN (22-TEETH) |
| 15. | 136-2898 | [8] | WASHER (58.3X89X1-MM THK) |
16. |
136-2899 | [4] | SHAFT-PLANETARY |
| 17. | 136-2901 | [4] | GEAR-PLANETARY (23-TEETH) |
| 18. | 136-2941 | [1] | CAGE |
| 19. | 148-4645 | [1] | GAUGE-OIL LEVEL(SWING DRIVE) |
| 20. | 148-4646 | [1] | PIPE-GAUGE |
| 21. | 227-6221 | [1] | BREATHERAS (SWING DRIVE) |
| 4H-6112 | [1] | BREATHER(SWING DRIVE) | |
| 227-6215 | [1] | BOSS(14-18-THD) | |
| 267-6785 | [1] | PIPE | |
| 22. | 267-6914 | [1] | SHAFT-PINION |
| 23. | 296-6229 | [1] | CARRIER-PLANETARY |
| 24. | 093-1731 | [1] | RING-RETAINING |
| 25. | 095-0891 | [3] | PIN-SPRING |
| 26. | 099-5194 | [4] | PIN-SPRING |
| 27. | 135-9044 | [2] | SEAL-LIP TYPE |
| 28. | 136-2904 | [1] | BEARING |
| 29. | 136-2940 | [1] | BEARING |
| 30. | 136-2942 | [1] | SEAL-O-RING |
| 31. | 297-6841 | [8] | BEARING-ROLLER |
| 32. | 3K-0360 | [1] | SEAL-O-RING |
| 33. | 453-2850 | [16] | BOLT(M20X2.5X200-MM) |
| 34. | 7Y-0252 | [3] | BEARING AS-ROLLER |
| 35. | 7Y-0595 | [2] | SPACER (58X79.6X6-MM THK) |
| 36. | 451-2176 | [16] | WASHER-HARD (22X35X3.5-MM THK) |
| 37. | 453-3447 | [10] | BOLT(M12X1.75X40-MM) |
| 38. | 451-2182 | [10] | WASHER-HARD(13.5X25.5X3-MM THK) |
| 1U-8846 | SEALANT-GASKET |
Related Products
Exhibition
Company Introduction
Packaging
FAQ
Q:What is your sample policy?
A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q:What are your main products?
A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.
If you need other excavator accessories, we can also supply according to your.
Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.
Q:How do I order?
A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.
Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
