165-9337 1659337 165-9336 170-9992 M2X146CHB SWING MOTOR FITS FOR CAT E345B 345B
| Place of Origin | Made in china |
|---|---|
| Brand Name | TCY |
| Model Number | CAT345B II MH 345B II 345B L 345B |
| Minimum Order Quantity | 1 |
| Price | 800-3000 |
| Packaging Details | Wooden Case |
| Delivery Time | 2-3/Negotiate |
| Payment Terms | T/T,Alipay,Wechat ...etc., Western Union, MoneyGram, D/P |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Swing Motor ASSY | Part NO. | 165-9337 1659337 165-9336 170-9992 |
|---|---|---|---|
| Model | CAT345B II MH 345B II 345B L 345B | Weight | 125KG |
| Condition | 100%new | Box Size | 50*50*55 |
| Warranty | 6 Months | Brand Name | TCY |
| Fit For | CAT Excavator | ||
| Highlight | 165-9336 Swing Motor,345B Swing Motor,165-9337 Swing Motor |
||
Product Description

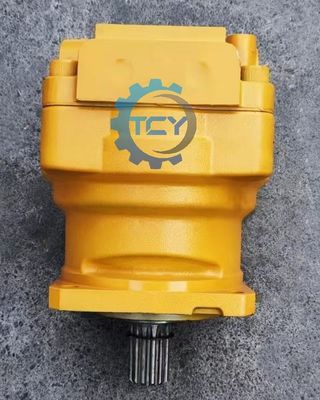

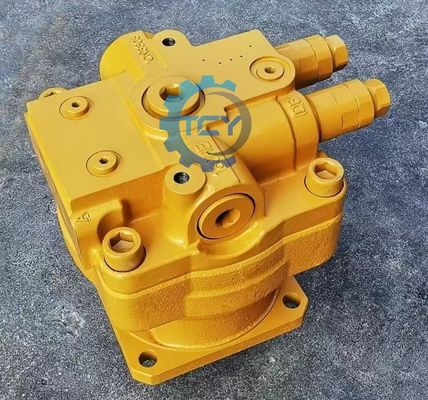

TCY 165-9337 1659337 165-9336 170-9992 M2X146CHB SWING MOTOR FITS FOR CAT E345B 345B
| Model: CAT345B II MH 345B II 345B L 345B | Part name:Swing Device |
| Part number:165-9337 1659337 165-9336 170-9992 | MOQ:1PCS |
| Packing:Wooden case | Place of Origin:China |
| Aftersale service provided:Online support | Apply To:CAT Excavator |
| Delivery Time: 1-3 days Or negotiate | Note: Other models can be consulted online |

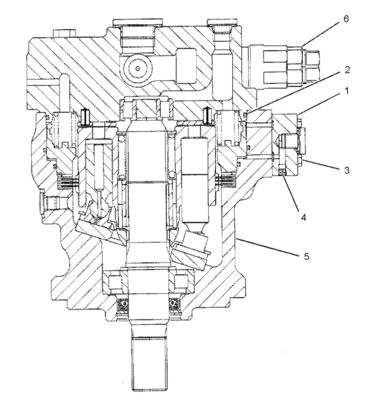

Product Show
| Pos. | Part No | Qty | Parts name |
| 1. | 170-9983 | [1] | BODY |
| 2. | 170-9981 | [1] | PLATE |
| 3. | 170-9980 | [1] | PLATE |
| 4. | 095-1579J | [1] | SEAL-O-RING |
| 5. | 170-9997 | PLUG | |
| 6. | 170-9972 | [1] | PISTON AS |
| (PISTON AS CONSISTS OF 9 PISTONS) | |||
| 7. | 170-9989 | [3] | PLATE |
| 8. | 170-9990 | [4] | PLATE |
| 9. | 6V-1902J | [1] | SEAL-O-RING |
| 10. | 126-4003J | [1] | SEAL-O-RING |
| 11. | 170-9976 | [1] | BARREL |
| 12. | 149-5461J | [1] | SEAL-O-RING |
| 13. | 170-9973 | ||
| 099-8111 | [2] | PIN-SPRING | |
| 14. | 110-5525 | [2] | PLUG |
| 15. | 3J-1907J | [2] | SEAL-O-RING |
| 16. | 170-9982 | [1] | PLATE |
| 17. | 170-9978 | [1] | SPRING |
| 18. | 5l-8625 | [1] | BEARING |
| 19. | 095-0939 | [1] | RING-RETAINING |
| 20. | 7Y-4291 | [18] | SPRING-BRAKE |
| 21. | 170-9988 | [1] | PISTON |
| 22. | 7Y-4256 | [12] | PIN |
| 23. | 170-9979 | [3] | SPACER (44X56.5X1.5-MM THK) |
| 24. | 170-9998 | ||
| 25. | 170-9987 | ||
| 26. | 170-9984 | ||
| 27. | 8T-9598 | [1] | RING-RETAINING |
| 28. | 170-9975 | ||
| 29. | 170-9977 | [1] | BUSHING |
| 30. | 170-9996 | [2] | PLUG |
| 31. | 095-1600J | [2] | SEAL-O-RING |
| 32. | 7Y-5221M | [4] | BOLT-SOCKET HEAD (M20X2.5X45-MM) |
| 33. | 170-9986 | ||
| 34. | 170-9985 | [2] | VALVE-PISTON |
| AVAILABLE REPAIR KIT(S): | |||
| 35. | 170-9995J | [1] | KIT-SEAL |
| KIT MARKED JCONTAINS PARTS MARKED J | |||
| M | METRIC PART |
